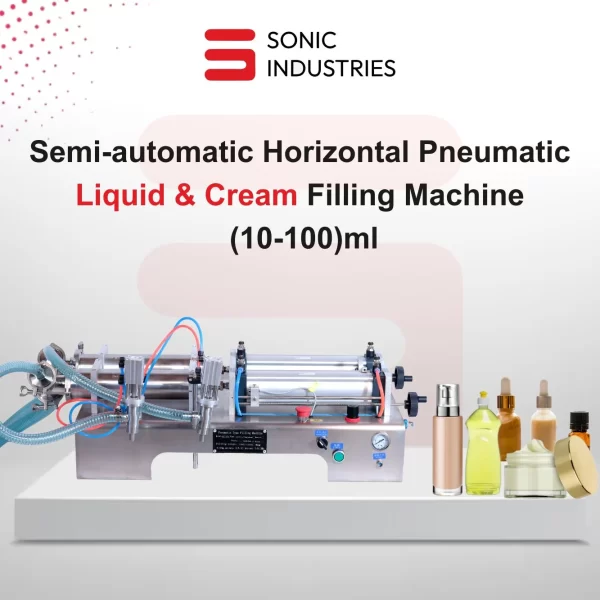

About Penumatic liquid filling machine Double head 10 to 100ml

Pneumatic Liquid Filling Machine

Semi-Automatic, Air-Driven Precision Filler for Water, Oil, Juices & More

---

ThePneumatic Liquid Filling Machineis a high-performance, semi-automatic solution for accurately filling non-viscous to semi-viscous liquids in small to medium-scale packaging operations. Designed to work without electricity, this air-powered filling machine delivershygienic, consistent, and efficient filling, making it the ideal equipment for industries such asfood and beverage, pharmaceuticals, cosmetics, chemicals, and agro-products.

Built with astainless steel SS304 body, this liquid filler ensures food-grade compliance and excellent corrosion resistance. With its easy volume adjustment,foot-pedal control, anti-drip nozzle, and tool-free cleaning system, the pneumatic filler combinesspeed, accuracy, and ease of useï all in one compact machine.

---

Pneumatic Operation ï No Electricity Required

Powered entirely by compressed air, this machine is ideal for wet or explosion-prone environments. It issafe, reliable, and energy-efficient, suitable for both indoor and outdoor operations.

Precise Filling Volume Control

The machine uses apneumatic piston systemto measure and dispense liquid, ensuringï1% filling accuracy. It supports adjustable fill volumes, ideal for a wide range of product sizes.

SS304 Construction ï Hygienic and Durable

All contact parts are fabricated withSS304 food-grade stainless steel, making the machine resistant to rust and easy to sanitize. Optional SS316 upgrade is available for corrosive or pharmaceutical products.

Foot Pedal Trigger System

The user can activate filling using asimple foot pedal, keeping both hands free for bottle handling. This semi-automatic control ensures precision and operator convenience.

Drip-Free Nozzle Design

Equipped with anon-drip stainless steel nozzle, the machine prevents spills and wastage during and after filling. Optional shut-off valve nozzles available for high-flow or foam-sensitive products.

Flexible Filling Range

This model can be customized or factory-set to suit a wide range of fill volumes, from10ml up to 1000ml or 2600ml, depending on your batch size and product type.

---

Feature	Specification
Model Type	Pneumatic Liquid Filling Machine
Filling Range	10ml to 1000ml / 50ml to 5000ml (selectable)
Accuracy	ï1%
Drive Type	Pneumatic ï Compressed Air
Air Pressure Required	0.4 ï 0.6 MPa
Speed	10 ï 25 bottles/min (product dependent)
Body Material	SS304 (SS316 optional)
Control Method	Foot Pedal or Push Button
Nozzle Type	Anti-Drip Stainless Steel
Cleaning System	Manual, Tool-Free Disassembly
Hopper Capacity	25L, 40L, 60L, or 100L (customizable)
Weight	25 ï 65 kg (model dependent)

---

The Pneumatic Liquid Filler is ideal for non-viscous and lightly viscous liquids:

Category	Examples
Beverages	Water, coconut water, fruit juices, flavored water
Oils	Cooking oil, mustard oil, essential oils, herbal oil
Chemicals	Pesticides, detergents, disinfectants, liquid cleaners
Pharma	Syrups, tonics, Ayurvedic liquids
Cosmetics	Liquid soaps, rose water, body lotions
Herbal	Aloe vera juice, amla juice, neera, energy tonics

---

Industry	Common Use Cases
Food & Beverage	Filling PET bottles with water, juice, edible oils
Pharmaceutical	Syrup bottles, tonics, health elixirs
Cosmetic & Skincare	Liquid lotions, rose water, herbal water
Chemical Industry	Liquid soap, detergent, sanitizers, phenyl
Agrochemicals	Liquid fertilizer, foliar sprays, pest repellents

---

1. Electricity-Free Operation

Perfect forrural units, remote workshops, and flammable zones. Operates only on air, offering increased safety and reduced utility costs.

2. High Accuracy

Every fill is delivered with exceptional consistency, keeping your product presentation uniform and professional.

3. Easy to Clean

Tool-free design means quick disassembly of the hopper, piston, and nozzle. Just flush with water or alcohol and start a new batch in minutes.

4. Hygienic and GMP-Ready

The use ofSS304ensures product safety foredible and pharmaceutical liquids. No rust, no contamination, and easy to sanitize.

5. Small Footprint

The compact size makes it ideal for businesses operating fromlimited spacessuch as home workshops, small factories, or shared units.

6. Minimal Maintenance

With fewer moving parts, no motors, and no electronics, maintenance is fast, cheap, and infrequent.

---

Feature	Benefit
SS316 Contact Parts	For high-acid or chemical-based liquids
Heated Hopper	Maintains temperature for liquids like oils or gels
Double Nozzle	Simultaneous filling of two containers
Vacuum Filling System	For foaming or volatile products
Mobile Trolley Stand	Easy movement around workshop/factory
Digital Flow Counter	Volume tracking for inventory control

---

Daily Cleaning Routine:

1. Flush the hopper and pipe with clean water or food-grade sanitizer

2. Remove nozzle and piston manually (no tools required)

3. Soak and scrub with brush provided

4. Rinse thoroughly and let air dry before reuse

Time Required:5ï10 minutes per batch

---

Filling Range	Output (Bottles/Min)	Ideal Products
10ml to 100ml	15ï25	Syrups, essential oils
100ml to 1000ml	12ï18	Juice, tonic, sanitizer
500ml to 5000ml	6ï12	Edible oil, chemicals, coconut water

---

• Pneumatic Liquid Filling Machine

• Stainless Steel Hopper (custom size)

• Foot Pedal or Control Switch

• Anti-Drip Nozzle

• User Manual

• Maintenance Kit (O-rings, seals, brush)

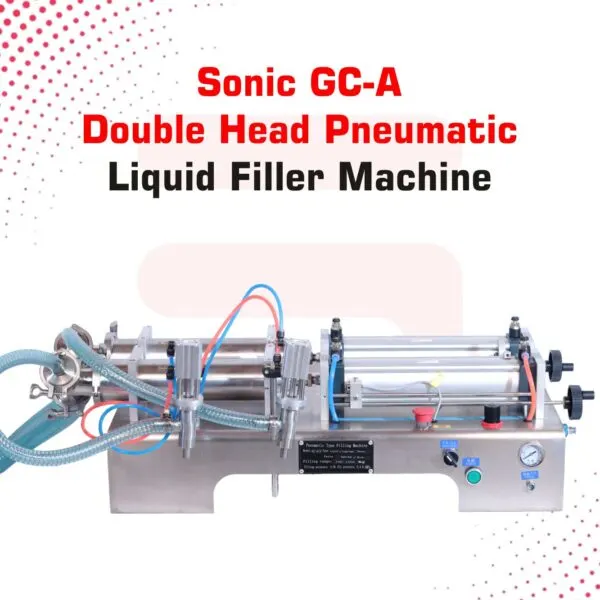

Versatile Double Nozzle Filling Innovation

Engineered with a double head and nozzle system, this pneumatic liquid filling machine delivers efficient and accurate liquid dosing for a variety of products. Suitable for food, pharmaceutical, and chemical industries, it supports diverse packaging types. The robust stainless steel build, user-friendly manual controls, and overload safety ensure prolonged durability and optimal performance.


Easy Cleaning and Operation for Everyday Demands

The tabletop design offers convenient installation, and the machine's easy-to-dismantle components streamline sanitation and maintenance. Its mechanical drive, manual foot switch operation, and intuitive controls make it accessible even for operators with minimal technical experience. Overload protection and polished surfaces contribute to safe and hygienic processing.
