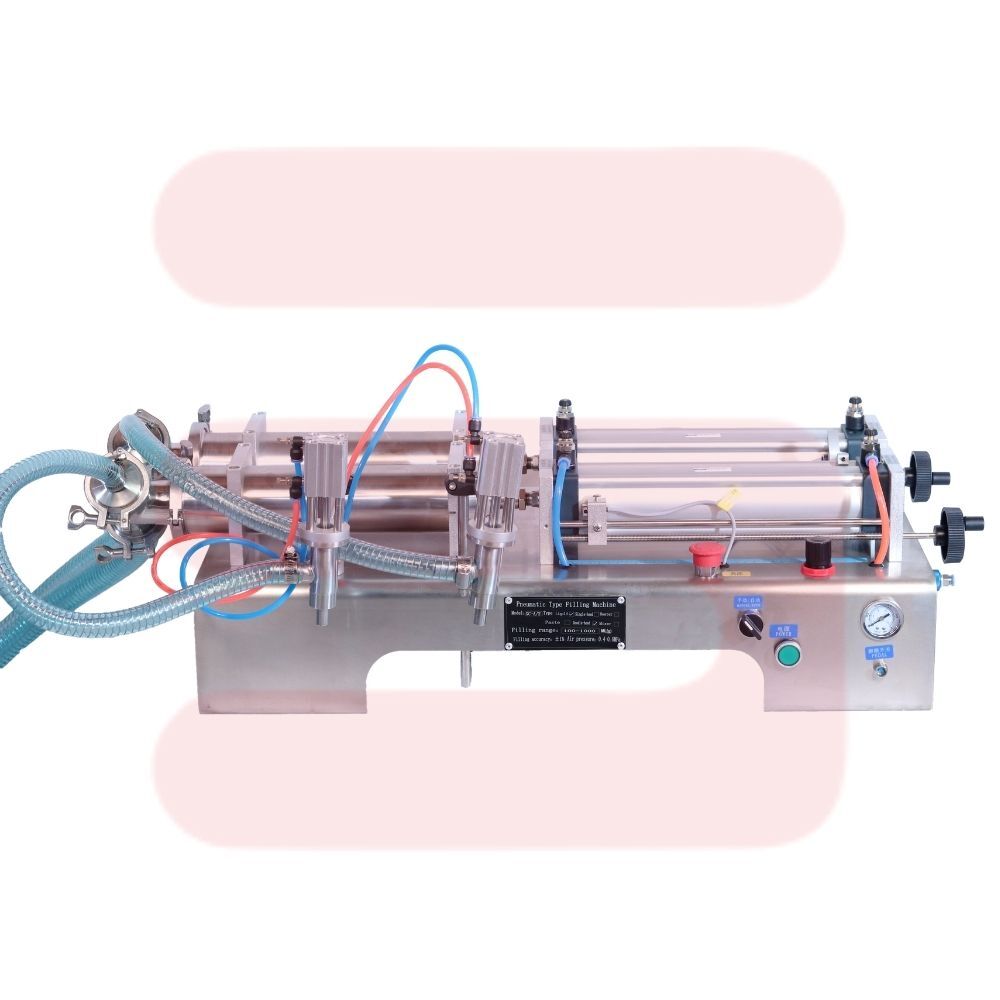

Penumatic liquid filling machine Double head 100 to 1000ml

About Penumatic liquid filling machine Double head 100 to 1000ml

In todayïs competitive industrial landscape, efficiency, precision, and consistency are essential factors for success in liquid packaging. Businesses across industries such as food & beverage, cosmetics, pharmaceuticals, lubricants, and chemicals are constantly seeking reliable solutions that reduce manual labor while increasing productivity. The Sonic Industries Double Nozzle Pneumatic Liquid Filling Machine 100 to 1000ML has been engineered to meet exactly these demands.

This dual nozzle semi-automatic filler is a powerful, high-precision machine that offers speed, flexibility, and performance. Unlike single-nozzle fillers, it allows two containers to be filled simultaneously, drastically reducing production time and improving output efficiency. Designed with advanced pneumatic technology, it ensures smooth operation, accurate dosing, and long-term durability.

With a filling range of 100ML to 1000ML, this machine is ideal for businesses handling both small and medium-sized liquid packaging requirements. Built from stainless steel, it is hygienic, corrosion-resistant, and suitable for use in industries that demand the highest standards of cleanliness and reliability.

Whether you are packaging edible oils, syrups, juices, creams, or detergents, this machine ensures a cost-effective, high-performance solution that combines automation with manual control flexibility, making it an excellent choice for growing businesses.

Product Description

The Sonic Industries Double Nozzle Pneumatic Liquid Filling Machine is designed to take industrial filling operations to the next level. Unlike traditional single-nozzle fillers, the dual nozzle configuration doubles efficiency, making it possible to fill two bottles, jars, or containers simultaneously with consistent accuracy.

Equipped with a pneumatic piston-driven system, the machine uses compressed air to power filling operations. This eliminates the need for electricity in the filling mechanism, making it safe to operate even in environments where flammable liquids or volatile chemicals are being processed.

Versatility Across Liquid Types

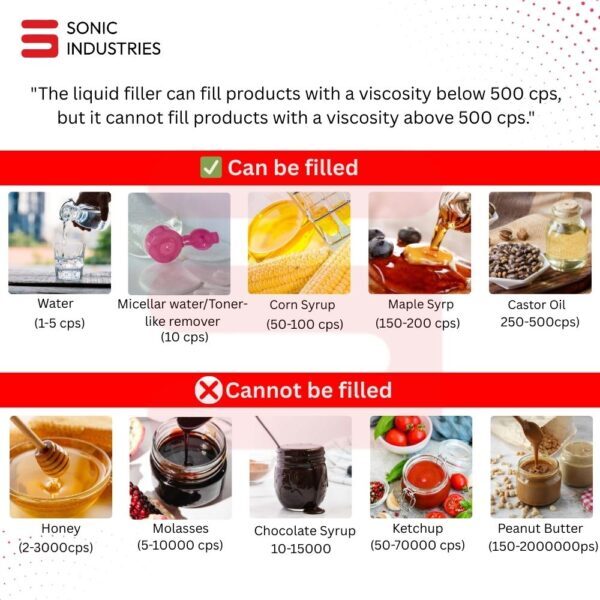

This filler is not limited to thin, water-like liquidsïit can handle low to medium viscosity liquids including:

• Beverages: Juices, milk, energy drinks, syrups.

• Food Products: Sauces, oils, vinegar, dressings, honey.

• Cosmetics: Lotions, shampoos, creams, sanitizers.

• Pharmaceuticals: Syrups, tonics, herbal extracts.

• Chemicals: Detergents, cleaning solutions, lubricants.

Hygienic & Industrial-Grade Build

The stainless-steel body ensures compliance with food-grade safety and GMP standards. Its modular design allows for quick disassembly and cleaning, ensuring no cross-contamination between different products.

Efficiency & Accuracy Combined

The adjustable filling range (100ML to 1000ML) allows businesses to switch between different container sizes easily. With pneumatic precision, the machine ensures less than ï1% deviation, reducing wastage and improving cost savings over time.

This machine is an excellent investment for businesses looking to scale production while maintaining consistency, hygiene, and speed.

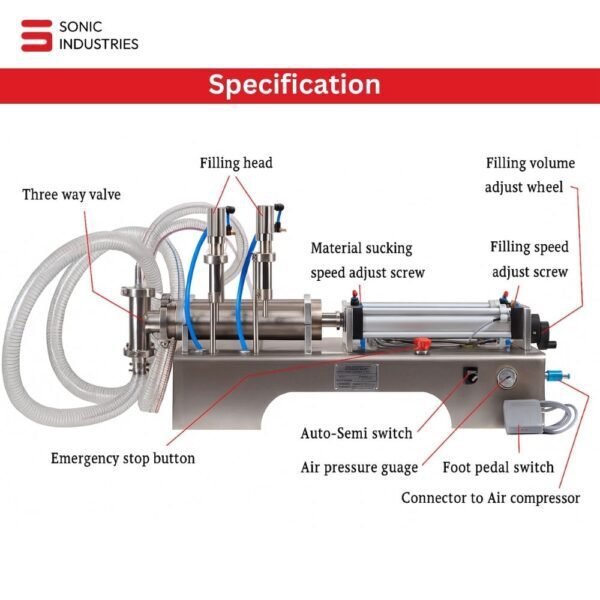

Technical Specifications

• Filling material: Beer, Milk, Water, Oil, Juice, Powder
• Packaging type:Cartons, Cans, Bottles, Bags, Pouch
• Automatic grade: Automatic
• Voltage: 110-220
• Driven type: Electric
• Application: Food, Commodity, Chemical, Clothing
• Packaging material: Paper, Wood
• Core components: Motor
• Machinery test report: Provided
• Video outgoing-inspection: Provided
• Warranty: 1 Year
• After-sales Service Provided: Online support
• Key selling points:Multifunctional
• Filling accuracy:ïï1%
• Weight (KG): 200
• Dimension(l*w*h): 1100*300*350mm(43.31*11.81*13.78in)
• Application: MEDICAL
• After-sales Service Provided: Engineers available to service machinery overseas
• Air Pressure: 0.4-0.6 MPa
• Filling accnracy: <ï1%
• Filling Speed: 10-50bottles/min
• Adjustable Model: 10-100ml
• Filing speed: 10-30bottle/min
• Power supply: 110V,220-240V/50-60HZ,20W
• Filling head: double heads
• Capacity option: ML
• Filling accuracy: ïï1%
• Machine size: 1100*300*350mm
• Machine size: 630*620*460mm

• Model: Sonic Industries 10 to 100ML Pneumatic Liquid Filling Machine

• Filling Range: 10ML to 1000ML

• Filling Accuracy: ï1%

• Filling Speed: 10ï30 bottles/min (depending on liquid & operator)

• Filling Mode: Manual / Semi-Automatic

• Air Pressure Requirement: 0.4ï0.6 MPa

• Material: Stainless Steel

• Nozzle Type: Anti-drip precision nozzle

• Machine Weight: Approx. 45ï60 kg

• Machine Dimensions: Compact, space-saving design

• Power Requirement: Pneumatic (air compressor required)

• Model Name: Sonic Industries Double Nozzle PneumaticLiquid Filling Machine

• Filling Range: 100ML to 1000ML

• Nozzles: Dual Nozzle (simultaneous filling)

• Filling Accuracy: ï1%

• Filling Speed: 20ï60 bottles/minute (depending on viscosity and operator speed)

• Operation Mode: Semi-Automatic with Pneumatic System

• Air Pressure Requirement: 0.4 ï 0.6 MPa (compressed air)

• Material of Construction: High-grade Stainless Steel (Food & Pharmaceutical Grade)

• Control System: Manual control with adjustable filling volume settings

• Cleaning: Easy disassembly & cleaning design

• Power Requirement: Pneumatic operation (minimal electrical use for controls only)

• Machine Dimensions: Approx. Customizable based on production line

• Weight: Heavy-duty build, stable for industrial use

Key Features & Benefits

1. Dual Nozzle for Higher Efficiency

• Fills two containers simultaneously, doubling production output.

• Saves operator time and reduces labor costs.

2. Wide Filling Range (100MLï1000ML)

• Flexible filling for small and medium packaging requirements.

• Adjustable volume settings make it suitable for multiple product lines.

3. High Filling Accuracy

• Pneumatic piston technology ensures ï1% precision, reducing product loss.

• Maintains consistency across every batch.

4. Hygienic Stainless-Steel Build

• Corrosion-resistant, food-grade, and GMP-compliant.

• Easy to clean, preventing contamination risks.

5. Pneumatic Safety & Reliability

• Uses compressed air instead of electric motors for filling.

• Safer for hazardous or flammable liquid applications.

6. User-Friendly Semi-Automatic Operation

• Easy to operate with minimal training.

• Gives operators flexibility to manage different container types.

7. Low Maintenance & Long Lifespan

• Fewer moving parts compared to fully electrical fillers.

• Durable design built for continuous industrial use.

Applications

The Sonic Industries Double Nozzle PneumaticLiquid Filling Machineis versatile and serves multiple industries, including:

• Food & Beverage Industry
  Oils, sauces, syrups, juices, dressings, honey.

• Cosmetic Industry
  Shampoos, lotions, sanitizers, liquid soaps, gels.

• Pharmaceutical Industry
  Syrups, tonics, herbal extracts, liquid supplements.

• Chemical Industry
  Detergents, lubricants, cleaning solutions, agrochemicals.

• Household Products
  Hand washes, disinfectants, floor cleaners, liquid detergents.

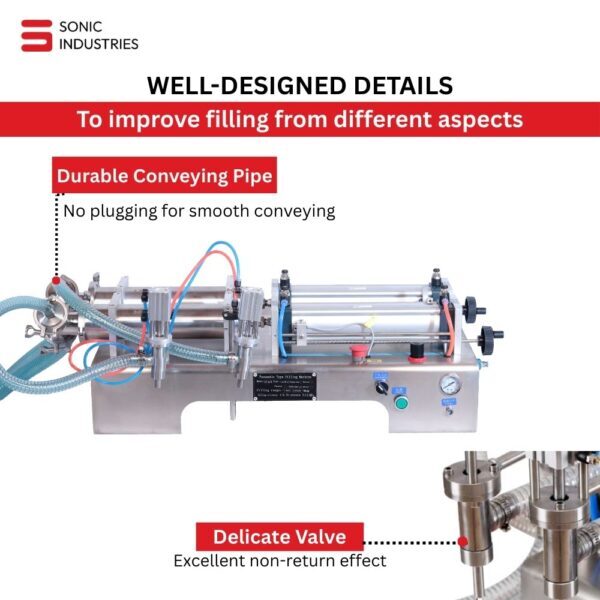

Efficient Double-Headed Operation

With its double nozzle configuration, this pneumatic liquid filling machine doubles productivity and significantly reduces filling time. Capable of handling a range of viscosities, it's perfect for filling juice, oil, or water with precision and speed. Its robust build and consistent output make it a dependable choice for businesses aiming to improve operational efficiency.

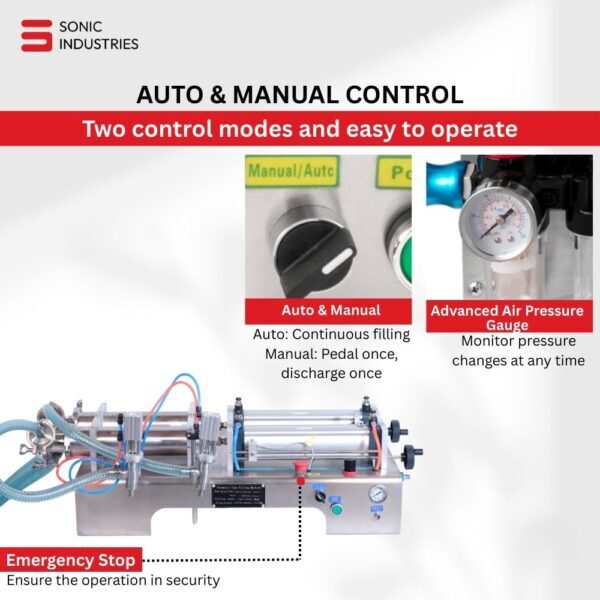

User-Friendly Controls and Maintenance

The machine's manual and pneumatic control system makes operation intuitive for a single operator. Its mechanical design allows for easy access and quick disassembly, streamlining the cleaning and maintenance process between production cycles. The adjustable volume feature ensures versatility across different packaging requirements.


Versatile Applications and Reliable Construction

Built from high-quality stainless steel, this liquid filling machine is suited for hygienic environments and handles a wide range of liquid products. Its semi-automatic operation, combined with wooden box packaging, ensures both safety during transit and longevity in varied industrial settings. The compact design fits seamlessly into different production lines.
