Penumatic liquid filling machine Single head 100 to 1000ml

Send Inquiry

Request To Call Back

Penumatic liquid filling machine Single head 100 to 1000ml

Name: Penumatic liquid filling machine Single head 100 to 1000ml
Brand: SONIC INDUSTRIES
Price: 34687.575 INR
Availability: InStock

Price 34687.575 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Penumatic liquid filling machine Single head 100 to 1000ml Specification

Product Type
Pneumatic Liquid Filling Machine Single Head

Material
Stainless Steel (SS304 / SS316 contact parts)

Application
Filling of liquid products such as oil, juice, water, chemicals, milk, shampoo, and more

Packaging Material
Suitable for bottles, jars, cans (Plastic, Glass, Metal)

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Pneumatic (Air-driven)

Drive Type
Pneumatic

Voltage
220V / 50-60Hz (Compressed Air Operated, No direct electrical drive)

Weight (kg)
Approx. 35 kg

Dimension (L*W*H)
Approx. 900 mm x 400 mm x 380 mm

Capacity
100 to 1000 ml per fill

Feature
Easy to clean; High precision filling; Anti-drip function; Stainless steel construction

Color
Silver

Cleaning
Tool-free, easy disassembly for cleaning

Hopper Capacity
Approx. 30 liters

Filling Speed
10-30 bottles/min (depending on operator and volume)

Filling Accuracy
1%

Filling Nozzle
Single Head (Anti-drip system)

Operation
Foot Pedal or Automatic

Suitable Liquids
Low to medium viscosity liquids

Air Pressure Required
0.4-0.6 MPa

Penumatic liquid filling machine Single head 100 to 1000ml Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5 Days

About Penumatic liquid filling machine Single head 100 to 1000ml

Pneumatic Liquid Filling Machine 100ml to 1000ml

SemiAutomatic AirPowered HighAccuracy Liquid Filler for MediumVolume Production

ThePneumatic Liquid Filling Machine 100ml to 1000mlis a highly efficient semiautomatic airdriven filling solution ideal formediumsized containersranging from 100ml up to 1 litre Designed for industries that demandprecision hygiene and scalability this machine is perfectly suited for filling water juice sanitizers edible oils liquid chemicals and more

Built withSS304 foodgrade stainless steel it ensures longlasting durability and contaminationfree operation The pneumatic design means it requiresno electricity operating solely on compressed air a safe and costefficient solution for manufacturers operating inwet environments or hazardous zones

This model is one of the most popular choices forSMEs contract packaging units and startup businessesthat are scaling up from manual processes and need a machine that isaccurate affordable easy to use and flexible

Adjustable Filling Range 100ml to 1000ml

With a precise volume control system this model easily adjusts to fill a wide variety of container sizes between100ml and 1000ml making it ideal for diverse product lines and packaging needs

Pneumatic System No Electricity Required

The machine works entirely oncompressed air making it suitable forexplosionprone flammable or wet areassuch as juice processing units pharma facilities or chemical plants

Precision Filling with 1 Accuracy

Equipped with apistoncylinder mechanism this filler delivers reliable repeatable accuracy that minimizes product waste and maintains consistent product presentation across every unit

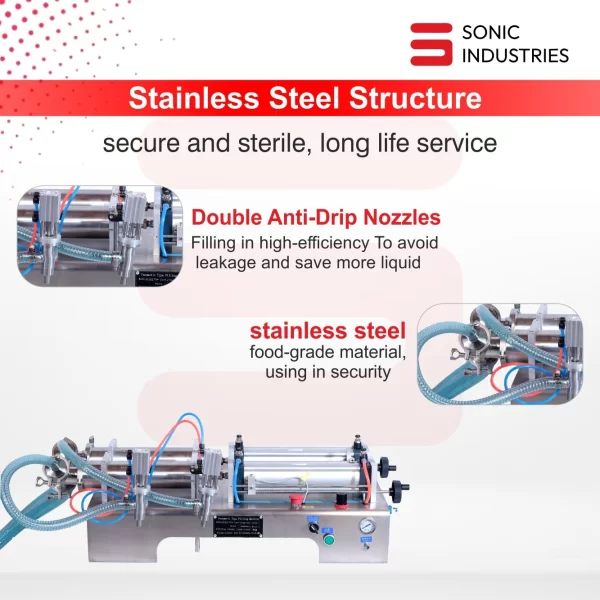

AntiDrip Stainless Steel Nozzle

A specially designedantidrip nozzleensures clean fills without overflow or spillage This minimizes waste and keeps the work environment clean and hygienic

SS304 FoodGrade Construction

Every contact part of the machine is made withSS304 stainless steel making it foodsafe rustproof and easy to sanitize For more demanding applicationsSS316can be provided on request

SemiAutomatic Control with Foot Pedal

Operators activate each fill cycle using asimple foot pedal keeping both hands free to handle bottles This ergonomic design reduces fatigue and speeds up production

Easy to Clean Maintain

Toolfree disassembly and simple design mean cleaning takes just a few minutes This allows forquick product changes and compliance with GMP standards

Feature Specification

Model Pneumatic Liquid Filling Machine 100ml to 1000ml

Filling Volume Range 100ml to 1000ml adjustable

Accuracy 1

Filling Speed 8 18 bottlesmin depends on volume operator

Drive System Pneumatic Air Compressor

Air Pressure Required 04 06 MPa

Body Material SS304 SS316 optional

Nozzle Type AntiDrip Stainless Steel

Hopper Capacity 25L 40L customizable

Control System Foot Pedal Manual Switch

Power Requirement None air only

Dimensions approx 550mm 500mm 700mm

Weight 30 45 Kg depending on model

This model handles a wide range oflowviscosity and semiviscous liquids It is not suitable for thick pastes or pulpy liquids Heres a breakdown by industry

Beverages Water

Packaged drinking water

Fresh fruit juices

Herbal drinks amla aloe vera giloy

Coldpressed juices

Coconut water

Pharmaceuticals

Liquid syrups

Ayurvedic tonics

Nutraceuticals

Homeopathic medicines

Digestive blends

Cosmetics Personal Care

Liquid soaps

Facial cleansers

Floral water rose sandalwood

Body oil hair oil

Skin lotions low viscosity

Chemical Cleaning Products

Hand sanitizers

Liquid disinfectants

Floor cleaners

Fertilizer solutions

Detergent liquids

Industry Example Applications

Food Beverage Filling juice bottles 1L water packs herbal drinks

Pharma Syrups cough medicine digestive formulations

Cosmetics Facewash toners oils in 250ml or 500ml bottles

Chemical Industry Sanitizers liquid hand wash toilet cleaners

Home Business Boutique product packaging health drinks

Contract Packers Versatile filling for various client needs

Benefit Impact

ElectricityFree Ideal for powerscarce or wet environments

FoodGrade Safe SS304 ensures hygienic and corrosionfree operation

High Accuracy Maintains brand consistency and reduces product loss

Fast Flexible Handles 818 bottles per minute

Durable Construction Rustproof industrialgrade build

Quick Cleaning Toolfree disassembly GMPfriendly

Customizable Output Change volume on the fly without changing parts

No Dripping Keeps workstation clean and saves product

Easy to Use Requires minimal training for operators

Accessory Purpose

SS316 Upgrade Ideal for corrosive or pharmagrade products

Dual Nozzle Fill two containers at once

Heated Hopper Maintains fluidity of warm oils or syrups

Vacuum AntiFoam Kit For foaming liquids like handwash or sanitizer

Bottle Guide Stand Ensures bottle alignment and reduces spillage

Trolley Mount Mobility and adjustable working height

Cleaning Instructions

Disconnect the air supply

Open hopper clamp and remove it manually

Detach piston and nozzle using quickrelease fittings

Rinse all parts with water or approved cleaning fluid

Reassemble and reconnect ready for the next batch

Highly Accurate and Versatile Liquid Filling

This pneumatic liquid filling machine offers superb precision, ensuring every bottle receives just the right amount of product with only 1% variance. Its single-head design incorporates an anti-drip system and caters to various container types and sizes, such as plastic, glass, or metal bottles, jars, and cans. Suitable for products such as oils, juices, shampoos, chemicals, and more, this semi-automatic unit adapts well to small and medium-scale production lines.

User-Friendly Operation and Easy Maintenance

With both foot pedal and automatic operation modes available, users have flexibility in control according to their workflow. The machine's tool-free, quick-disassembly construction simplifies cleaning and reduces downtime. All product-contact parts are made from food-grade stainless steel, ensuring hygiene and durability for prolonged use. No direct electrical drive is required; it operates entirely on compressed air for safe and efficient performance.

FAQ's of Penumatic liquid filling machine Single head 100 to 1000ml:

Q: How does the pneumatic liquid filling machine operate?

A: The machine runs on compressed air (0.4-0.6 MPa), using a pneumatic system to drive the filling process. Operators can choose between a foot pedal for manual control or an automatic mode for quicker, consistent filling cycles.

Q: What types of liquids can be filled with this machine?

A: It is designed for low to medium viscosity liquids such as water, juice, oil, milk, chemicals, shampoo, and other similar products. Thick pastes or highly viscous products are not recommended.

Q: What is the cleaning process for this filling machine?

A: Cleaning is easy and tool-free. The parts in contact with the liquid can be quickly disassembled, washed, and reassembled, streamlining maintenance between production runs and ensuring hygienic operations.

Q: When and where is this filling machine most beneficial to use?

A: This machine is ideal for small and medium-sized businesses looking to fill a variety of liquid products in industries such as food and beverages, cosmetics, or chemicals. Its compact size and ease of use make it suitable for workshops, production rooms, or laboratories.

Q: What are the key benefits of using this single-head pneumatic filling machine?

A: Key advantages include high filling accuracy (within 1%), versatility for different containers and products, anti-drip filling, easy maintenance, and robust stainless steel construction for long-term reliability and cleanliness.

Q: How can the filling volume and speed be adjusted?

A: The filling volume can be set from 100 to 1000ml per cycle, and the filling speed can be adjusted depending on the product's viscosity and the operator's pace, achieving up to 30 bottles per minute in optimal conditions.
