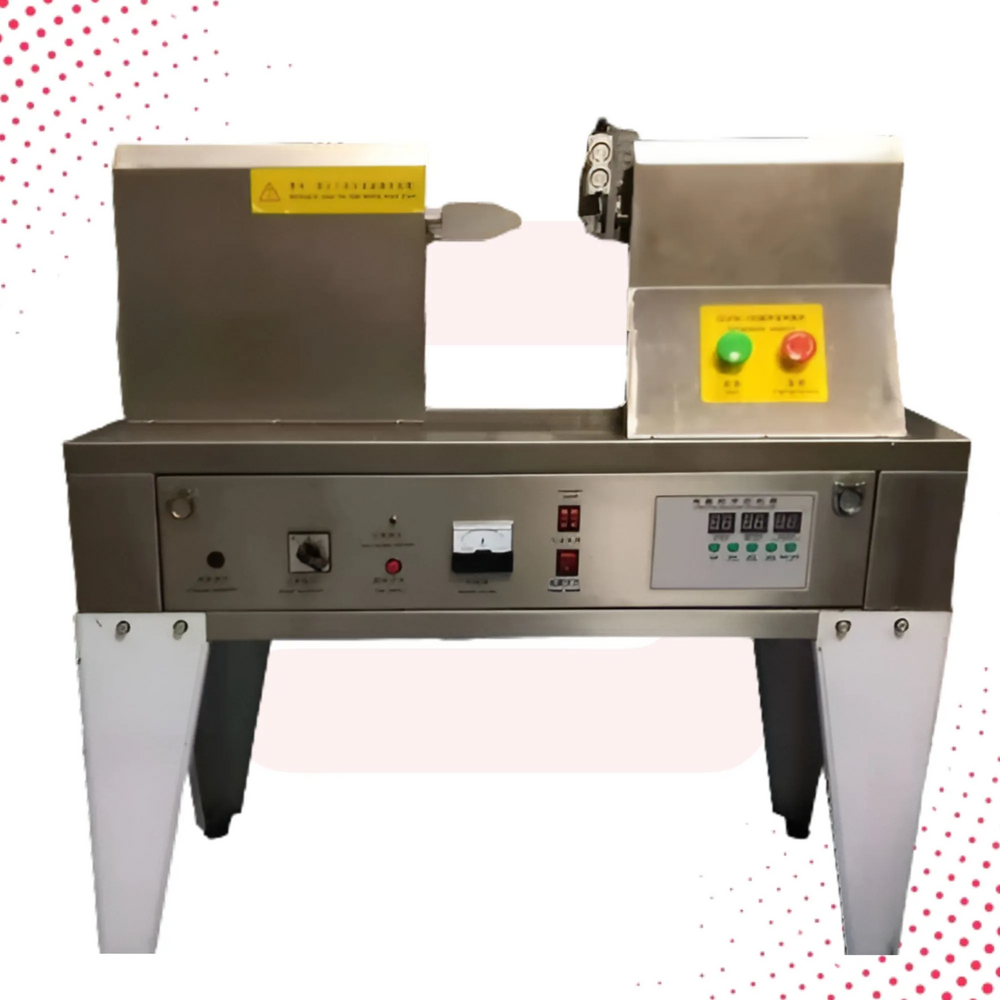

Ultra sonic tube sealing machine

Name: Ultra sonic tube sealing machine
Brand: SONIC INDUSTRIES
Price: 155490.075 INR
Availability: InStock

Price 155490.075 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ultra sonic tube sealing machine Specification

Accuracy
1%

Seals Type
Ultrasonic wave seal

Automation Grade
Semi-Automatic

Driven Type
Electric

Type
Ultrasonic Tube Sealing Machine

Power
220V/50Hz, 1500W

Voltage
220V/50Hz

Sealing Type
Ultrasonic

Color
Stainless Steel / Silver

Filling Capacity
10-250 ml (Based on tube size)

Production Capacity
500-900 tubes/hour

Packaging Speed
8-15 tubes/min

Condition
New

Sealing Speed
8-15 tubes/min

Weight
80 kg

Dimension (L*W*H)
850 mm x 500 mm x 700 mm

Sealing Length
3-10 mm

Packaging Material
Plastic, Laminated Tubes

Application
Tube end sealing for plastic, laminated, and composite tubes

Applicable Industries
Pharmaceutical, Cosmetics, Food, Chemical, Adhesives

Safety Features
Emergency Stop, Overload Protection

Tube Diameter Range
10-50 mm

Service Support
On-site and online technical support

Structure Material
304 Stainless Steel Housing

Tube Length Range
60-250 mm

Noise Level
70 dB(A)

Display Type
Digital Touch Screen

Ultrasonic Frequency
20 kHz

Operation Mode
Manual and auto mode selectable

Control System
Microcomputer programmable control

Cooling System
Air Cooling

Ultra sonic tube sealing machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
6 Days

About Ultra sonic tube sealing machine

Sonic Industries UltrasonicPneumaticTube Sealing Machine Precision Efficiency Reliability for Modern Packaging

TheSonic IndustriesUltrasonicPneumaticTube Sealing Machineis an advanced packaging solution designed forhighprecision sealing of plastic and laminated tubesacross multiple industries Built forspeed durability and efficiency this machine offersstateoftheart ultrasonic sealing technologycombined withpneumatic control making it a preferred choice forcosmetics pharmaceuticals food personal care and chemical manufacturing units

Whether you need toseal small batches for a boutique businessor runcontinuous production in largescale operations this machine ensuresairtight clean and visually appealing sealsthat meet international packaging standards

CuttingEdge Ultrasonic Sealing Technology

Unlike conventional heat sealers theSonic Industries Ultrasonic Tube Sealeruseshighfrequency ultrasonic vibrationsto createstrong consistent and tamperproof seals This nonthermal process ensures that the tube material issealed precisely without overheating protecting the contents from contamination or damage

The ultrasonic sealing process also allows forcleaner seamswithno burning charring or material distortion ensuring that your packaging looksprofessional and brandready

Pneumatic Precision for Consistency

This machine integratespneumatic control technology which deliversuniform pressure throughout the sealing process ensuringperfect seals for every tuberegardless of size or thickness The pneumatic mechanism also providessmooth stable operation reducing the risk of sealing errors or material wastage

Wide Range of Applications

TheSonic Industries Ultrasonic Tube Sealing Pneumatic Machineis incredibly versatile and supports sealing forvarious tube materialsincludingplastic PE PP and laminated tubes It is an ideal solution for industries that requirehygienic reliable and attractive packaging such as

Cosmetics Personal CareCreams lotions gels scrubs and ointments

PharmaceuticalsTopical medications gels and medicinal creams

Food BeveragesCondiments pastes sauces and edible gels

Industrial Chemical ProductsAdhesives lubricants and cleaning pastes

Key Features of the Sonic Industries Ultrasonic Tube Sealing Pneumatic Machine

Advanced Ultrasonic SealingCreatesairtight and visually clean sealswithout overheating the tube material

Pneumatic OperationEnsuresconsistent sealing pressurefor highaccuracy results across various tube sizes

Material FlexibilityCompatible withPE PP and laminated tubesused in multiple industries

HighEfficiency PerformanceSpeeds up packaging processes reducing production time and operational costs

UserFriendly InterfaceEasy controls forquick setup and minimal operator training

Compact Durable DesignBuilt towithstand continuous operationin demanding production environments

Low Maintenance NeedsDesigned foreasy cleaning and servicing reducing downtime

Benefits of Using Ultrasonic Tube Sealing Technology

Superior Seal IntegrityUltrasonic sealing preventsleaks contamination and tampering ensuring product safety

Enhanced Aesthetic AppealProducesneat uniform and brandfriendly seals improving product presentation

Environmentally FriendlyUsesminimal energycompared to traditional heat sealing methods

Product SafetyThenonthermal sealing processprevents product degradation maintaining quality and shelf life

CostEffective OperationReduces material wastage and operational downtime ensuringbetter ROI

Why Choose Sonic Industries

Sonic Industries is known for deliveringinnovative and reliable packaging solutionsfor businesses of all sizes With a focus onquality performance and customer satisfaction the Ultrasonic Tube Sealing Pneumatic Machine reflects our commitment to helping manufacturersoptimize their packaging processes

When you invest in this machine you get

Durable and highperformance equipmentbuilt for longterm use

Comprehensive customer supportfor installation training and maintenance

Tailored solutionsto meet your specific packaging requirements

Technical Specifications

Feature Details

Brand Sonic Industries

Model Ultrasonic Tube Sealing Pneumatic Machine

Sealing Technology Ultrasonic Vibration Sealing

Tube Compatibility Plastic PE PP Laminated Tubes

Sealing Diameter 10mm 60mm Customizable

Sealing Speed 10 25 tubes per minute Depending on size material

Operation Mode Pneumatic

Power Supply 220V 50Hz

Dimensions Compact SpaceSaving Design

Applications Cosmetics Food Pharmaceuticals Chemicals

Maintenance Easy to Clean Service

Ideal for Businesses of All Sizes

Whether you run asmall cosmetic brandor alargescale pharmaceutical production line theSonic Industries Ultrasonic Tube Sealing Pneumatic Machinehelps you achieveseamless hygienic and visually appealing tube packagingessential for standing out in todays competitive market

Invest in thisversatile and highefficiency tube sealing solutionto take your packaging process to thenext level of reliability and professionalism

Reliable, Efficient Tube Sealing

Engineered for efficiency and precision, this ultrasonic tube sealing machine delivers consistent, high-quality seals for plastic and laminated tubes. With versatile tube size compatibility and a robust stainless steel build, it suits varied industrial needs. Its programmable microcomputer control and dual operation modes make it adaptable for different production environments.

Intuitive User Interface and Smart Safety

The digital touch screen simplifies operation and real-time adjustments, while comprehensive safety features such as emergency stop and overload protection prioritize operator well-being. With both manual and automatic settings, users have flexibility and control during operation.

Superior Performance and Easy Maintenance

With a sealing speed of 8-15 tubes per minute and precise control (1% accuracy), this machine boosts productivity and minimizes waste. Its air cooling system and stainless steel housing ensure low maintenance and long service life, supported by both on-site and online technical services.

FAQ's of Ultra sonic tube sealing machine:

Q: How does the ultrasonic tube sealing process work on this machine?

A: The machine uses a 20 kHz ultrasonic frequency to generate vibrations that cause localized heat, melting and sealing the tube material at the ends. This method ensures a reliable, clean, and strong seal without the need for adhesives or heat sources, minimizing risk of contamination.

Q: What kind of tubes can be processed with this equipment?

A: It is suitable for sealing plastic, laminated, and composite tubes with diameters from 10 to 50 mm and lengths between 60 to 250 mm. This flexibility makes it useful across various industries including pharmaceuticals, cosmetics, food, chemicals, and adhesives.

Q: When should I select manual mode versus auto mode during operation?

A: Manual mode is ideal for small batch runs or for training and setup, while auto mode is recommended for standard production to maximize efficiency and accuracy. Switching between modes is simply managed via the digital touch screen interface.

Q: Where is this ultrasonic tube sealing machine most effectively used?

A: The machine is best utilized in production facilities within the pharmaceutical, cosmetic, food, chemical, and adhesive industries, especially where precise, hygienic, and rapid tube-end sealing is required.

Q: What distinguishes the ultrasonic sealing technique from traditional heat sealing?

A: Ultrasonic sealing creates a bond by vibrations, not by direct heat, which reduces thermal stress on the packaging material and shortens sealing time. It offers higher sealing quality, lower energy consumption, and less material distortion compared to conventional heat sealing.

Q: How do I maintain the machine for optimum performance?

A: Regularly clean the ultrasonic generator and sealing jaws, ensure air filters are clear for efficient cooling, and inspect the touch screen and control system functionality. The robust 304 stainless steel housing also simplifies external cleaning and reduces the risk of corrosion.

Q: What are the main benefits of choosing this semi-automatic ultrasonic tube sealing machine?

A: Key advantages include reliable sealing quality, fast processing speeds (500-900 tubes/hour), minimal maintenance requirements, advanced safety features, and comprehensive technical support both onsite and online. Its versatility in tube sizes and user-friendly controls enhance productivity in diverse industrial environments.
