About Automatic l sealer machine with shrink tunnel

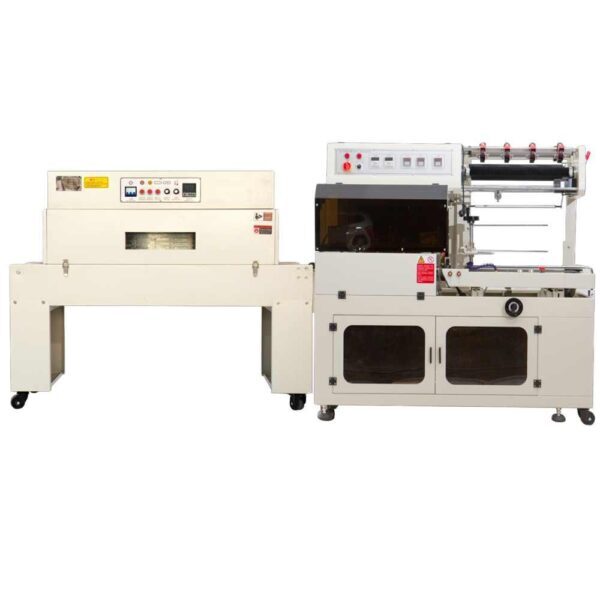

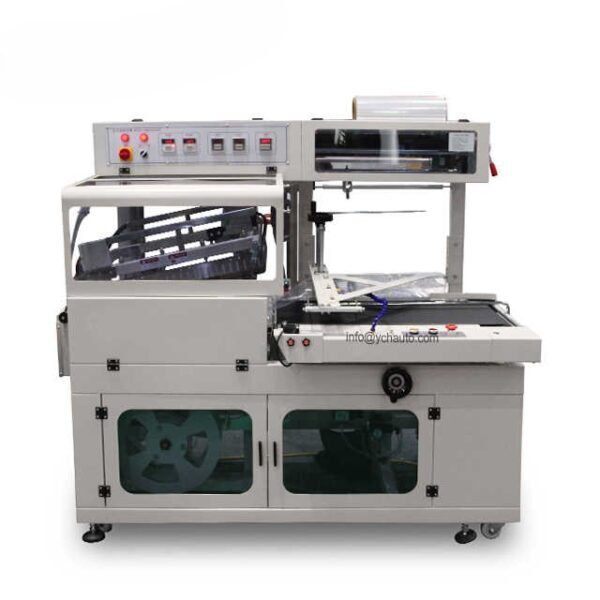

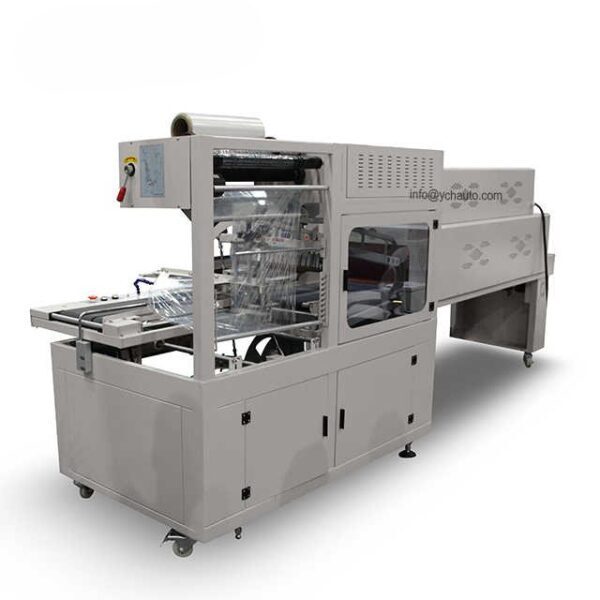

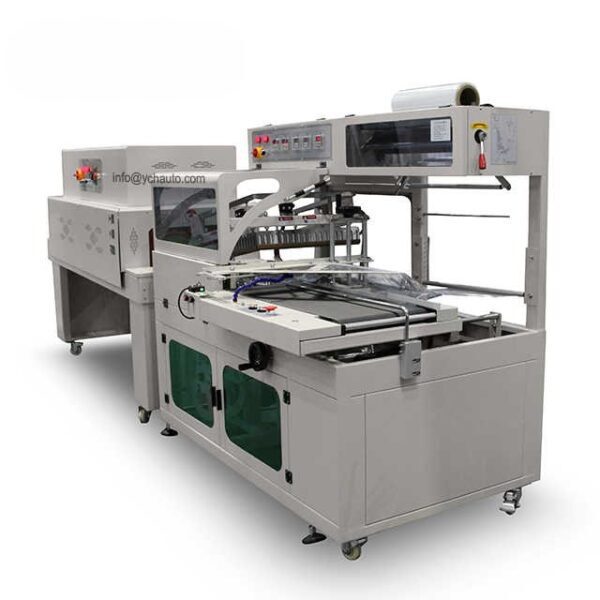

L Sealer with Shrink Tunnel Machine

Professional Shrink Wrapping System for Fast Reliable and Durable Packaging

Perfect for Electronics Cosmetics Bottles Boxes Trays More

In todays competitive packaging industry product safety presentation and shelf appeal are more important than ever TheL Sealer with Shrink Tunnel MachinefromSonic Industriesis a versatile and highperformance shrink wrapping solution designed to meet the packaging needs of industries ranging from cosmetics and pharmaceuticals to food processing stationery electronics and FMCG

Combining the efficiency of anL Sealer With Shrink Tunnel Machinewith the professional finish of aheatbased shrink tunnel this twoinone packaging solution providesfast clean and secure sealing and shrinking of shrink filmsaround a wide variety of products It enhances not only the aesthetic appeal but also thedurability hygiene and protectionof the final product

This machine ensures that every product packaged isdustfree tamperproof and retailreadydelivered with precision consistency and speed

Sealing Shrinkingin one streamlined process

Highspeed packagingof up to 1200 packs per hour

Compatible withPVC POF and Polyolefin films

Digital temperature and conveyor speed controls

Compact and mobile designfor easy relocation

Ideal forbottles trays boxes and combo kits

Designed formedium to highvolume packaging lines

Step 1 Sealing L Sealer Unit

Products are manually or automatically placed inside theshrink film sleeveusually centerfolded and positioned on the sealing area TheLshaped sealing bladecomes down to cut and seal the film around the product in an L shapesealing both the horizontal and vertical edges in one step

Step 2 Shrinking Shrink Tunnel

Once sealed the product is moved on a conveyor through theshrink tunnel wherehightemperature air circulationcauses the shrink film to wrap tightly around the product This gives it aprofessional transparent wrinklefree finish

Feature Specification

Sealing Area Up to 18 x 24 450mm x 600mm

Tunnel Chamber Size 30 L 15 W 8 H

Sealing Blade Material Nickelchromium with PTFE nonstick coating

Film Compatibility PVC POF Polyolefin

Max Film Roll Width Up to 600mm

Voltage 220V 50Hz optional 3 Phase

Power Consumption 4 kW 8 kW varies with tunnel size

Packaging Speed 500 1200 packshour

Temperature Range 0C 300C adjustable

Conveyor Speed 0 10 mmin adjustable

Control Panel Digital PID Controller with Speed Adjustment

Machine Material MS Powder Coated Stainless Steel Optional

Net Weight Approx 150250 Kg

Mobility Caster Wheels with Lock

Cosmetics Personal Care

Perfume bottle sets

Gift box sets

Shampoo lotion bottle combos

Soap bars multipacks

Pharmaceutical Healthcare

Medical kits

Syrup bottle sets

Diagnostic kits

Tablets in trays

Food Bakery

Readytoeat meal trays

Bakery items cookies cakes bread

Dry fruit and snack boxes

Jar multipacks

Retail Packaging FMCG

Gift items

Promotional product kits

Stationery combo packs

Toys accessories

Electronics Hardware

Power banks phone chargers

Cables batteries

Small gadgets

Automotive spare parts

Books Publishing

Book sets

Diaries and planners

Paper reams folders

1OnePass Shrink Packaging

Combines sealing and shrinking in a single pass boosting efficiency and reducing handling time

2Precision Temperature Control

Digital PID controller ensuresconsistent heating reducing chances of film burn or weak shrink

3Multipurpose Compatibility

Adaptable to a variety ofproduct shapes and sizesboxes bottles trays combos or bundles

4CrystalClear Finish

Delivers atight transparent tamperevident finishthats visually appealing and secure

5HeavyDuty Build

Made with premium materials the machine withstands continuous use in industrial conditions

6Moisture Dust Protection

Once wrapped your product is sealed from external contaminantsideal for hygienesensitive items

7Fast Output with Minimal Labor

Suitable for small medium and highvolume production lines Just one operator can handle sealing and packaging

L Sealer Machine with PTFEcoated Sealing Arm

Integrated Shrink Tunnel with Conveyor

Film Roll Holder with Guide System

Conveyor Belt Mesh or Silicon Roller

Temperature and Speed Controller Panel

Operator Manual Maintenance Kit

1Year Warranty Optional AMC Support

Advanced Automation and Versatility

This machine offers an automatic, sensor-based film feeding process, simplifying the packaging of items of varying sizes. The L-type sealing and adjustable guides make it suitable for numerous products, enhancing productivity and precision while supporting packaging materials like PVC, POF, and Polyolefin films.


Intuitive Control and Safety

Equipped with a user-friendly digital PLC and touch screen, the machine enables seamless operation. Safety is prioritized through features like an emergency stop and overheat protection, while the air-cooled system maintains operational stability during high-volume packaging tasks.


High Efficiency and Reliable Performance

Achieving speeds up to 1,800 packs per hour, the powered conveyor and accurate temperature controls deliver consistently sealed products. The Teflon-coated, non-stick cutting blade and stainless steel tubular heaters ensure reliable shrink wrapping for long-term industrial use.
