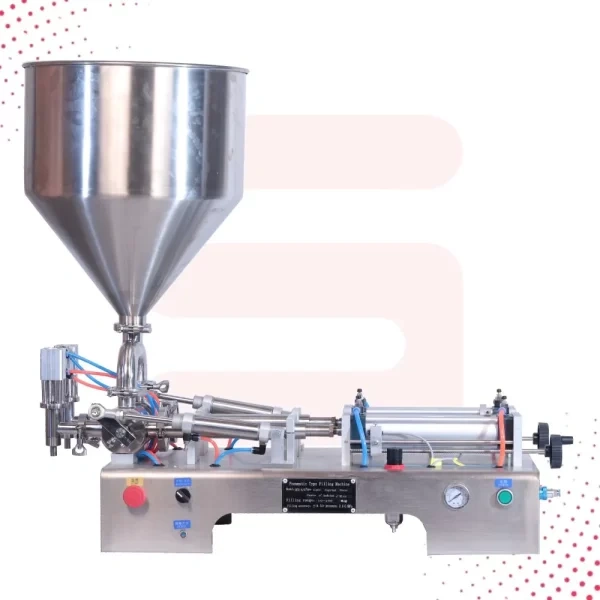

About Pnemautic Paste filling Machine Double head 50 to 500 ML

Pneumatic Paste Filler 50ml to 500ml

Semi-Automatic, High-Precision Filling Machine for Creams, Gels, and Viscous Products

---

In todays fast-paced manufacturing environment, industries that deal with viscous products like pastes, gels, and creams require filling machines that can deliver speed, accuracy, and reliability without compromising on hygiene and quality. ThePneumatic Paste Filler (50ml to 500ml)is designed to meet these exact demands.

This semi-automatic machine blends pneumatic power with manual control to provide efficient, accurate filling of semi-viscous and thick materials. Ideal for food, cosmetic, pharmaceutical, and chemical industries, it fills containers in thePneumatic Paste Filler 50ml to 500mlrange with minimal effort and maximum precision. Whether youre producing 100 units a day or 10,000, this machine scales up your output while maintaining superior quality standards.

---

• Filling Range:50ml to 500ml (adjustable piston setting)

• Filling Accuracy:1%

• Drive System:Pneumatic (compressed air required)

• Operation Mode:Foot pedal or push-button

• Construction Material:SS304 (Optional SS316 for pharma/corrosive products)

• Product Type:Creams, gels, pastes, sauces, lubricants, balms

• Industries Served:Food, Cosmetics, Pharma, Ayurveda, Chemicals

---

1. Precision Pneumatic Filling

The machine is pneumatically powered using compressed air. This enables smooth piston movements, precise volume control, and consistent fill weights across every cycle with accuracy levels up to1%. This drastically reduces product loss and improves efficiency.

2. Adjustable Volume (50ml to 500ml)

With adjustable filling settings, this model can handle a wide volume range within a single unit. Whether youre packaging 50ml travel-sized tubes or 500ml jars, the same machine adapts easily.

3. Food & Pharma Grade Stainless Steel

All contact parts are made fromSS304 stainless steel, ensuring corrosion resistance, food safety, and ease of cleaning. An upgrade toSS316is available for more chemically reactive or pharmaceutical-grade products.

4. Anti-Drip Nozzle System

The anti-drip nozzle with a shut-off mechanism ensures clean fills and prevents stringing, splashing, or leakage. This maintains both product integrity and a hygienic workspace.

5. Manual Trigger Control

Though powered pneumatically, the operation is triggered manually through a foot pedal or push button. This semi-automatic control gives the operator flexibility and reduces the chance of overfills or spills.

6. Medium to High-Volume Output

The machine can fill15 to 25 containers per minute, depending on the viscosity of the product and container type. Its perfect for medium-scale production and contract packaging businesses.

7. Compact Design, Heavy Duty Frame

Despite its powerful filling capabilities, the machine has acompact, bench-top or trolley-mounted design, making it suitable for factories with limited floor space. Its rigid structure resists vibration and ensures long operational life.

---

Feature	Specification
Filling Range	50ml to 500ml (adjustable piston stroke)
Filling Accuracy	1%
Drive Type	Pneumatic (compressed air 0.40.6 MPa)
Material	SS304 (SS316 optional)
Nozzle Type	Anti-drip shut-off nozzle
Output Speed	1525 fills/min (based on viscosity)
Hopper Capacity	3050 Litres (customizable)
Control Type	Foot pedal / Push button
Machine Dimensions	Approx. 950 x 500 x 1150 mm
Machine Weight	4060 kg
Cleaning	Tool-free disassembly for quick cleaning

---

Food Industry

• Peanut butter

• Ketchup and sauces

• Mayonnaise

• Jam and jelly

• Chutneys and pickle paste

• Honey, syrup, chocolate paste

Cosmetics & Beauty

• Face and body creams

• Aloe vera gels

• Herbal creams and scrubs

• Hair conditioners and serums

• Lotions and moisturizers

Pharmaceuticals & Ayurveda

• Ointments and balms

• Ayurvedic pastes

• Herbal gels

• Medicated thick syrups

• Pain relief creams

Chemical & Industrial

• Greases and lubricants

• Liquid detergents

• Cleaning gels

• Adhesives and sealants

---

Industry	Applications
Cosmetics	Tubes of face cream, lotion bottles, hair gels
Food	Sauce pouches, chutney jars, honey bottles
Pharma	Ointment tubes, pain relief gels, herbal creams
Chemicals	Grease jars, cleaning solutions, industrial pastes
Ayurveda	Herbal gels, balms, lehyams, oil-based creams

High Precision Paste Filling Solution

This double-head pneumatic paste filling machine guarantees exceptional filling accuracy of up to 1%, thanks to advanced pneumatic technology. With stainless steel construction and a robust design, it reliably fills a wide range of viscous and semi-viscous products, from creams and gels to pastes, for industries demanding high hygiene standards.


Easy Maintenance and Quick Changeover

The machine is engineered for effortless cleaning and maintenance, featuring easy dismantling of parts. Contact components are made from SS304 stainless steel, which resists corrosion and enables fast sanitation between batches, making it convenient for multi-product usage.


Flexible and Safe Operation

Featuring both foot pedal and auto control modes, the machine adapts to varied production needs. Safety is prioritized with mechanisms like overload protection and an emergency stop switch, assuring operator well-being during routine use.
