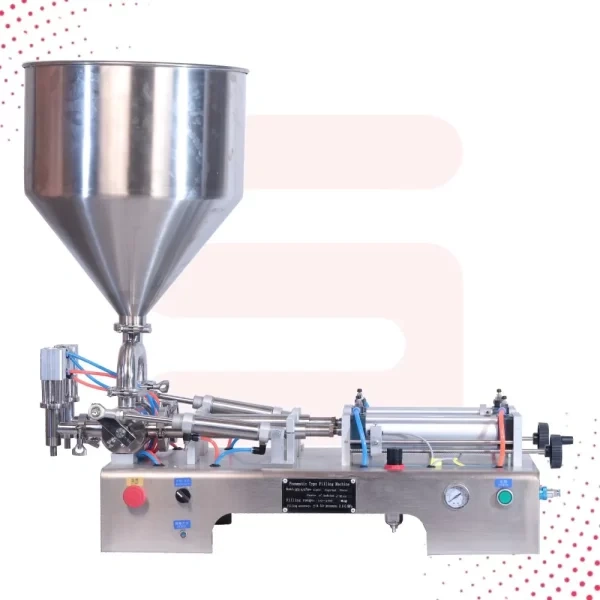

About Pnemautic Paste filling Machine Double head 100 to 1000 ML

Pneumatic Paste Filling Machine

Accurate Hygienic Powerful Solution for Viscous Product Filling

In todays fastpaced industrial world companies across the pharmaceutical food cosmetic and chemical sectors demand efficient accurate and safe filling solutions for thick and semisolid products ThePneumatic Paste Filling Machineis the ultimate answer for manufacturers looking for precision speed and hygienic packaging of viscous materials

This machine uses compressed air to fill a wide range of products with different thicknesses into jars bottles pouches and tubes Whether youre filling honey cream chutneys adhesives or ointments the pneumatic paste filler ensures reliable performance and minimal product loss with maximum control over the entire filling process

With a combination of robust design easy operation and GMPcompliant stainlesssteel build this semiautomatic machine is a perfect match for industries of all sizesfrom small homegrown brands to medium and largescale factories

Apneumatic paste filling machineis a semiautomatic device that uses compressed air to push thick liquids or pastes through a volumetric piston system and into containers Unlike electric models it does not rely on motors or gearboxes instead the movement of the piston and valves is controlled by air pressure

Because of this mechanism the machine is safe flameproof and highly accurate in filling sticky heavy or nonfreeflowing substances It is most commonly used where high filling precision speed and product cleanliness are critical

1Volumetric Filling Precision

The machines heart is a pneumatic piston that draws in and ejects exact volumes of paste ensuring fill volume consistency every time This reduces product wastage and boosts brand consistency

2Pneumatic Power System

Operating on compressed air the machine requires no electricity for its main mechanismmaking it explosionproof and safe for hazardous environments such as chemical or pharma units

3Food Pharma Grade Build

All contact parts are made ofSS304 or SS316 stainless steel which is rustproof corrosionresistant and compliant with GMP and food safety standards

4AntiDrip Nozzle

Equipped with anautomatic shutoff nozzle this feature prevents dripping wastage and contamination of containers or the surrounding area

5Manual or SemiAutomatic Modes

You can control the filling process using afoot pedalpushbutton or in semiautomatic timed cycles depending on the production workflow

6Easy Maintenance and Cleaning

With simple mechanical design and toolless dismantling of major parts cleaning and maintaining the machine is straightforwardperfect for industries with strict hygiene norms

Feature Details

Filling Range 5ml to 1000ml custom options available up to 5L

Filling Accuracy 1

Air Pressure Requirement 04 06 MPa

Filling Speed 1035 fillsmin based on volume and viscosity

Material of Construction SS304 SS316 for foodpharma applications

Hopper Capacity 30L 50L 100L customizable

Nozzle Type Antidrip shutoff twin nozzles optional

Net Weight 6090 kg model dependent

Machine Dimensions Approx 1000 x 500 x 1100 mm

Power Supply Pneumatic air compressor required

Control Foot pedal manual switch semiauto

Thick sauces like ketchup chutneys mayonnaise

Herbal and ayurvedic pastes

Cosmetic creams lotions gels

Pharmaceutical ointments and balms

Honey chocolate syrup peanut butter

Lubricating grease and industrial adhesives

Detergent paste polish and wax

Food Processing

Tomato ketchup mustard dips

Gingergarlic paste tamarind paste

Jams fruit pulps chocolate spread

Salad dressings and condiments

Cosmetics Beauty

Cold cream sunscreen lotion face masks

Herbal pastes and exfoliators

Serums and body lotions

Pharmaceuticals

Pain relief balms and topical creams

Oral gels and ointments

Medicated lotions and pastes

Chemicals Industry

Shoe polish liquid detergent polishing wax

Silicone sealants adhesives joint compounds

Constructiongrade pastes and glues

1 CostEfficient Automation

Perfect for semiautomatic production environments It saves labor increases productivity and is much more affordable than fully automatic machines

2 FlameProof Safety

As no electricity is used in the pistons movement it eliminates the risk of shortcircuit or ignition making it ideal for explosive or sensitive manufacturing zones

3 High Output Per Hour

Capable of handling6002100 containershourdepending on the viscosity volume and operator speed

4 Flexibility

Changeover between products and container types is simple Fill volumes are adjustable with no need for programming skills

5 Long Service Life

With fewer moving parts and pneumatic actuation the machine is less prone to breakdowns and wear tear

6 GMP Compliance

Meets pharmaceutical cosmetic and foodgrade manufacturing standards globally

The Pneumatic Paste Filling Machine operates in 4 simple steps

1Material Loading

Product is poured into the hopper Stirring or heating options are available if the product tends to harden

2Suction Phase

On foot pedal activation the piston pulls the paste into the cylinder via vacuum

3Filling Phase

The piston then pushes the exact measured quantity through the nozzle into the container

4AntiDrip Stop

Once filling is complete the nozzle shuts to prevent postfill leakage

This cycle can be repeated manually or via semiauto timer for continuous production

You can enhance the machine according to your product requirements

Addon Benefit

Heating Jacket Keeps sticky products like wax or ghee flowable

Stirring Hopper Prevents sedimentation in herbal or particulate products

Double Nozzles Doubles the outputgreat for batch production

Vacuum Hopper Lid Prevents air bubbles in creams and gels

Bottle Positioning Jig Helps align containers under the nozzle

Digital Timer Automates the fill cycle without foot pedal

Glass bottles

PET and HDPE jars

Laminated tubes

Spout pouches

Metal or plastic tubs

Tin containers

The machine nozzle can be adjusted for container neck size depth and fill level

Feature Pneumatic Filler Electric Filler

Safety Flameproof Electrical risks present

Accuracy High 1 Moderate

Maintenance Low High motor wear

Portability High no motor Low

Price Range Medium High

Ideal For Hazardous thick products Liquids or lowviscosity pastes

Precision Filling for Viscous Products

Engineered to handle viscosities up to 80,000 CP, this double-head pneumatic machine delivers accurate dosing from 100 to 1000 ml per stroke, making it ideal for products like gels, creams, jams, and adhesives. Its stainless steel contact parts enhance product safety for food and pharmaceutical use.


Flexible Operation Modes

Choose between a manual foot switch for controlled single fills or opt for semi-automatic mode to streamline repetitive operations. These adaptable controls make it easy to integrate the filling machine into existing production lines or smaller-scale setups, maintaining pace with demand.


Hygienic and Easy to Maintain

The tool-free dismantling system enables fast cleaning and maintenance, minimizing downtime and supporting compliance with strict industry standards. Both SS304/316 contact surfaces and the smooth frame construction promote effortless sanitation, whether you're switching between batches or preparing for routine cleaning.
