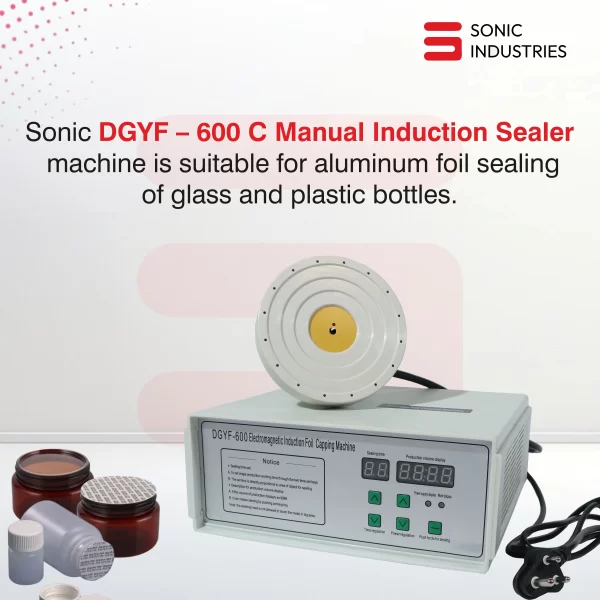

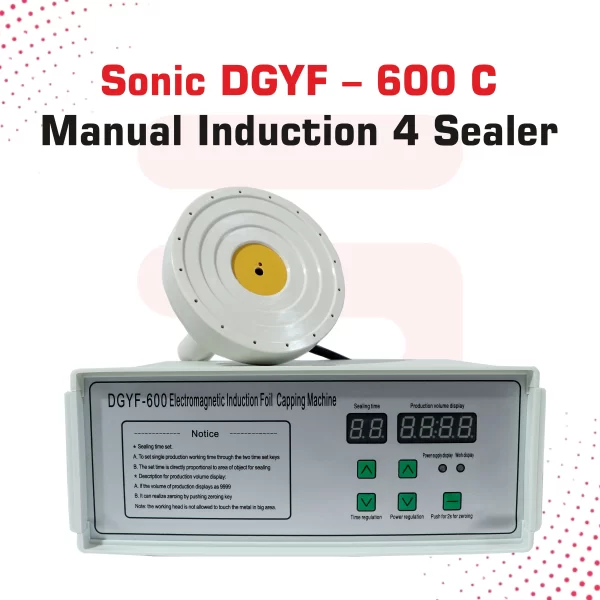

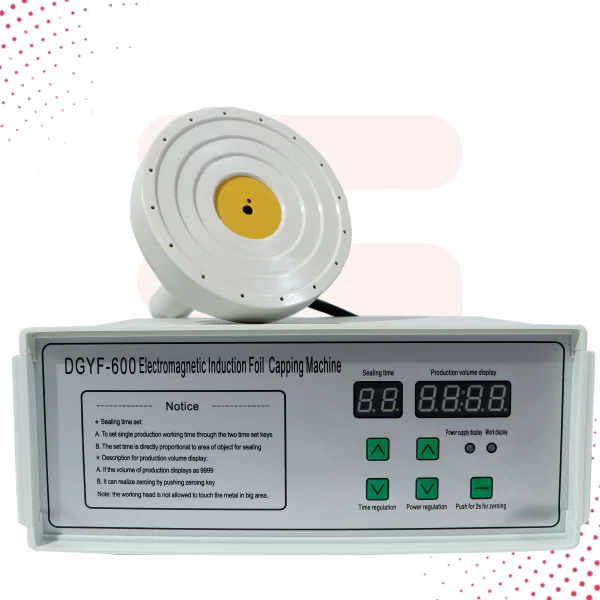

Induction sealing machine DGFY 600C 20 to 130MM

About Induction sealing machine DGFY 600C 20 to 130MM

TheInduction Sealing Machine 600CbySonic Industriesis a reliable, compact, and semi-automatic electromagnetic induction sealer engineered for sealingaluminum foil linersonto plastic and glass bottle mouths. Built with modern design, intuitive controls, and high performance in mind, the 600C ensuresleak-proof, tamper-evident, and airtight sealingthat protects product freshness and integrity.

With a sealing range suitable forcap diameters from 20mm to 100mm, theInduction Sealing Machine 600Cis ideal for businesses acrosspharmaceuticals, food processing, cosmetics, ayurvedic, chemical, and agro-product sectors. Thedigital control panel,automatic overheating protection, andhandheld sealing headmake it user-friendly and efficient, even inspace-limited or mobile setups.

Whether youïre sealing health tonics, oils, powders, or syrups, the Sonic 600C delivers consistent results, giving your productsretail-ready packaging standards.

---

Key Features

Seals Cap Sizes from 20mm to 100mm
Digital Display with Timer and Power Settings
Handheld Operation ï Semi-Automatic
Advanced Electromagnetic Induction Technology
Air-Cooled System ï No Water Required
Compact Design ï Easy to Move and Operate
Tamper-Evident, Leak-Proof Foil Sealing
Seals PET, HDPE, LDPE, PP, and Glass Bottles
Overheat and Short Circuit Protection

---

Technical Specifications

Specification	Details
Model	Induction Sealing Machine 600C
Cap Size Range	20mm ï 100mm
Compatible Containers	PET, PP, HDPE, LDPE, Glass Bottles
Sealing Speed	20 ï 40 bottles per minute (depends on operator & cap size)
Sealing Technology	Electromagnetic Induction Heating
Voltage Requirement	220V, 50Hz, Single Phase
Power Consumption	Approx. 800W ï 1000W
Timer Settings	0.1 to 9.9 seconds
Control Panel	Digital ï Timer, Power Level Display
Body Material	Industrial-grade MS Powder-Coated / Optional SS Upgrade
Sealing Head Type	Handheld Coil (Air-cooled)
Cooling System	Integrated Air Cooling Fan
Dimensions (L ï W ï H)	Approx. 340mm ï 290mm ï 160mm
Machine Weight	Approx. 6ï7 kg
Operation Type	Semi-Automatic (handheld wand-based trigger sealing)

---

Applications Across Industries

Industry	Typical Products Sealed
Pharmaceuticals	Syrups, tonics, herbal extracts, vitamin supplements
Food & Beverages	Juices, spices, protein powders, ghee, sauces, honey
Ayurvedic & Herbal	Hair oils, herbal drops, tablets, churna powders
Cosmetics & Skincare	Creams, lotions, oils, face gels
Chemical & Agrochemicals	Fertilizers, pesticides, lubricants, cleaning products
Veterinary & Pet Care	Tonic bottles, shampoos, supplements
Startups & MSMEs	Home-based product lines, small batch manufacturers

---

Why Choose the Sonic 600C Induction Sealing Machine?

1.Leak-Proof & Tamper-Evident Packaging
Enhance your productïs integrity and market appeal with retail-compliant foil sealing.

2. Long Shelf Life & Safety
Protects against moisture, dust, oxidation, and microbial contamination.

3. Plug & Play Setup
Just plug into a power socket, set the time, and begin sealing ï no assembly or complex settings.

4. Consistent, High-Quality Sealing
Uniform sealing temperature and pressure for clean, professional foil adhesion.

5. Eco-Friendly, No Flame or Chemical Use
Safe for food and pharmaceutical environments ï clean operation without smoke or odor.

6. Low Power Consumption, High Efficiency
Ideal for manufacturers seeking sustainable, cost-effective solutions.

---

Compatible Materials

• Plastic Bottles (PET, PP, HDPE, LDPE)

• Glass Bottles with Plastic Caps

• Wide-Mouth Plastic Jars

• Caps with Wad-Type or Induction Foil Liners

---

How It Works ï Step by Step

1. Fill and Cap the Bottle
   Insert the aluminum foil liner inside the cap and tightly screw it onto the bottle.

2. Set the Timer and Power
   Use the digital panel to choose sealing time and power level based on cap size and material.

3. Position the Induction Head
   Hold the handheld wand above the cap (2ï3cm distance).

4. Trigger the Sealing Cycle
   Press the start button and allow the induction coil to heat the foil for the preset time.

5. Cooling and Inspection
   After sealing, let the bottle cool for a few seconds. Peel and test the seal if needed.

---

Ideal Sealing Times (Guide Only)

Cap Size	Bottle Type	Suggested Time (seconds)
20mmï30mm	Small plastic bottles	0.8 ï 1.5s
35mmï60mm	Medium PET/HDPE jars	1.5 ï 2.8s
70mmï100mm	Wide-mouth jars	2.5 ï 3.5s

---

Control Panel Features

• Digital timer setting (0.1 to 9.9 seconds)

• Adjustable power levels for different foil types

• LED indicator for sealing status

• Error alerts for overheating or coil faults

• Easy-to-understand interface

---

Machine Highlights

Compact Footprintï Fits on any worktable
Operator-Friendly Controlsï Minimal training required
Ergonomic Sealing Wandï Lightweight for long usage
Maintenance-Free Operationï No moving parts to wear out
Overheat Protectionï Built-in safeguards extend machine life
Value for Moneyï Industrial quality at an economical price

---

Troubleshooting Guide

Problem	Possible Cause	Solution
Seal not forming	Insufficient power or time	Increase sealing time or power
Overheating warning	Fan blocked or long operation	Clean fan, allow rest
Uneven sealing	Misaligned head	Position wand properly
Foil burns or melts	Excessive sealing time	Decrease time
No sealing beep	Coil not activated	Check wand connection and power supply

---

Optional Accessories

• Extra induction coil head

• Voltage stabilizer

• Foil caps and liners

• Foot switch trigger (for semi-auto mode)

• Machine stand with storage

Reliable Induction Sealing for Bottles and Jars

Engineered for superior sealing performance, the DGFY 600C utilizes induction technology to create airtight seals on foil caps. This ensures product freshness and leak prevention, making it indispensable for food, pharmaceuticals, and cosmetic applications.


Compact, Portable, and Easy to Use

With its lightweight design and modest dimensions (310 x 260 x 130mm), this induction sealing machine offers remarkable portability. It fits easily onto any worktable, allowing seamless operation without occupying much workspace.


Versatile Application and Efficient Operation

Capable of sealing a wide range of container sizes (20mm to 120mm), the DGFY 600C is tailored for businesses aiming for efficiency. Its 60 BPM sealing speed enhances productivity while maintaining consistent quality across diverse packaging materials.
