Induction sealing machine Dgfy -600A 20 to 100MM

Send Inquiry

Request To Call Back

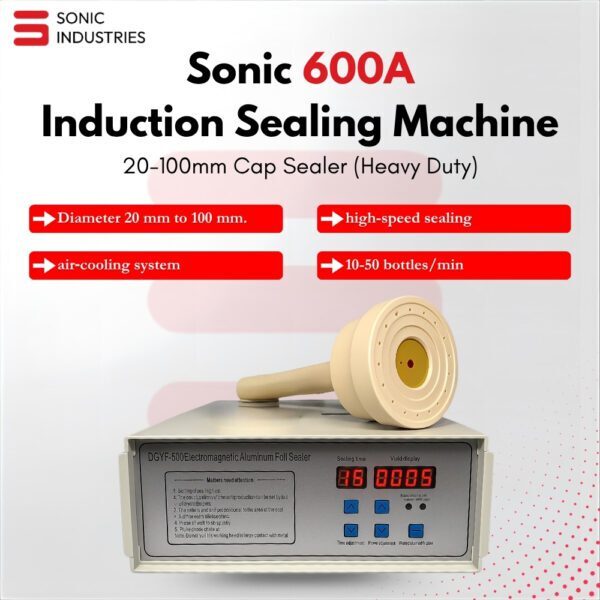

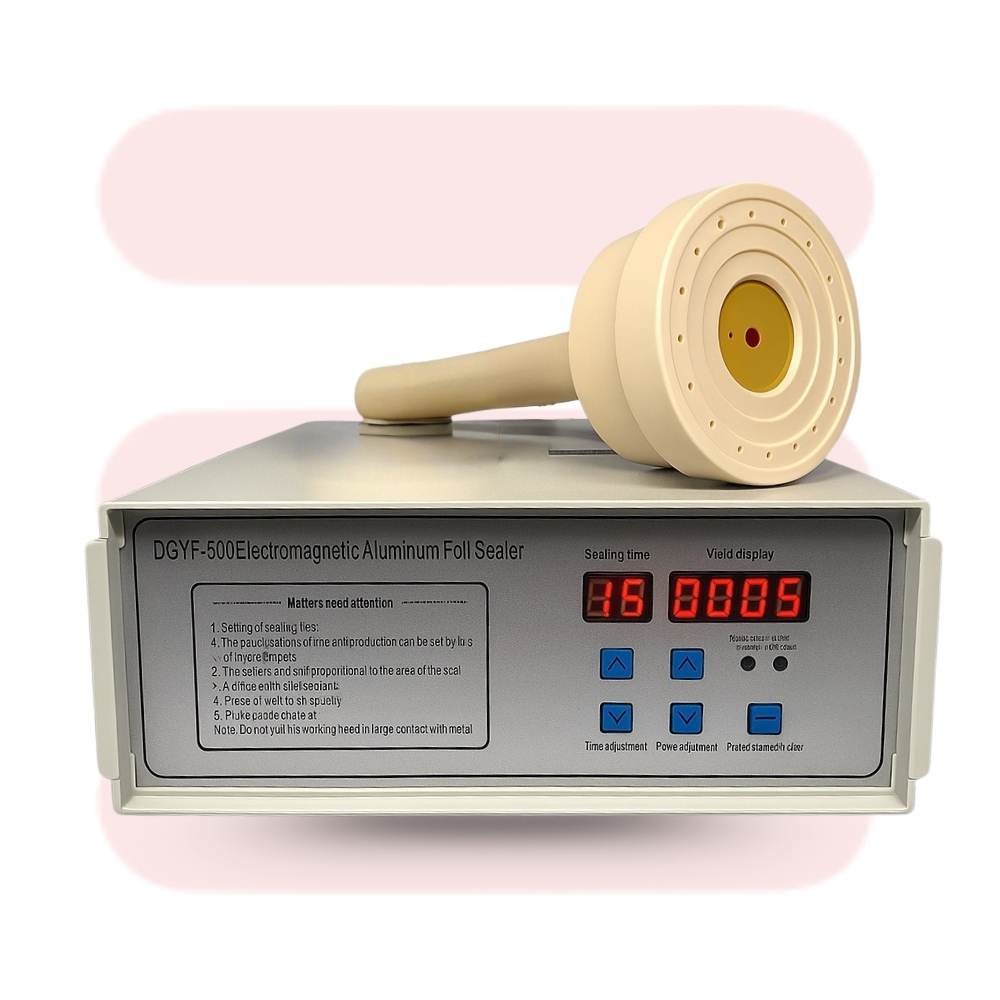

Induction sealing machine Dgfy -600A 20 to 100MM

Name: Induction sealing machine Dgfy -600A 20 to 100MM
Brand: SONIC INDUSTRIES
Price: 7599.0 INR
Availability: InStock

Price 7599.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Induction sealing machine Dgfy -600A 20 to 100MM Specification

Sealing Length
20 to 100 mm (Cap Diameter Range)

Packaging Speed
10-50 bottles/min

Sealing Speed
10-50 bottles/min (depending on operator and bottle size)

Accuracy
High sealing accuracy suitable for pharmaceutical and food grade packs

Voltage
220V/50Hz

Packaging Material
Plastic, Glass, PET, PE, HDPE bottles with foil liners

Weight
5 kg

Application
Sealing bottles with induction aluminum foil caps

Production Capacity
Up to 1200 bottles/hour (operator dependent)

Automation Grade
Semi-automatic

Condition
New

Seals Type
Induction Sealing

Color
White and Blue

Type
Handheld Induction Sealing Machine

Dimension (L*W*H)
340 x 290 x 150 mm

Power
500W

Driven Type
Electric

Sealing Type
Induction Seal

Cable Length
Approx. 1.2 meters

Control Panel
Digital with sealing timer and power adjustment

Recommended Cap Height
10 to 50 mm

Replacement Parts
Sealing coil, fuse available as spares

Noise Level
<65 dB

Indicator Features
LED indicators for operation and fault

Compatible Cap Material
Aluminum foil laminated caps

Operation Mode
Handheld, portable use

Cooling System
Built-in air cooling fan

Operating Environment
Temperature 10C-50C, humidity <85% RH

Safety Features
Overheat protection, overload cut-off

Induction sealing machine Dgfy -600A 20 to 100MM Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5 Days

About Induction sealing machine Dgfy -600A 20 to 100MM

In the world of industrial packagingprecision sealingis not just a finishing step its a brandsfirst promise to the customer Whether youre bottling mineral water packing nutritional supplements or filling household chemicals an improperly sealed product can meanloss of freshness contamination risks and brand damage

TheSonic Industries600A Induction Sealing Machineeliminates these risks by providingairtight tamperevident and leakproof sealsfor mediumsized caps 20100mm Built forhighvolume production lines the 600A combinescuttingedge electromagnetic induction technologywith arugged aircooled designto ensure consistent performance shift after shift

The Sonic 600A is amediumcap range heavyduty induction sealing machineengineered for businesses that need

Speedwithout compromising seal quality

Flexibilityto handle multiple container materials

Durabilityfor 247 industrial use

By usingcontactless electromagnetic heating the 600A bonds a foil liner inside the cap to the container lip This method

Preserves product freshness

Prevents leaks during shipping

Offers visible tamper evidenceto end users

Its especially valuable for manufacturers infood beverage pharmaceuticals cosmetics and chemical industries wherequality control and complianceare nonnegotiable

Cap Diameter Range20100mm

HeavyDuty BuildMild steel body with powder coating for corrosion resistance

AirCooled TechnologyEliminates the need for complex watercooling setups

Digital Power ControlAdjust sealing intensity for different liners and materials

MultiMaterial CompatibilityPET HDPE PP glass containers

Safety FirstOverheat protection overvoltage safeguards and emergency stop button

Compact FootprintFits seamlessly into existing production lines

Specification Details

Cap Diameter Range 20mm to 100mm

Power Output 80W adjustable

Cooling Type Aircooled

Body Material Powdercoated Mild Steel

Electrical Supply 230V AC 50Hz

Sealing Speed Up to 30 containersmin

Machine Weight Approx 2 kg

Safety Features Overheat Overvoltage Emergency Stop

Compatible Liners Onepiece and twopiece induction liners

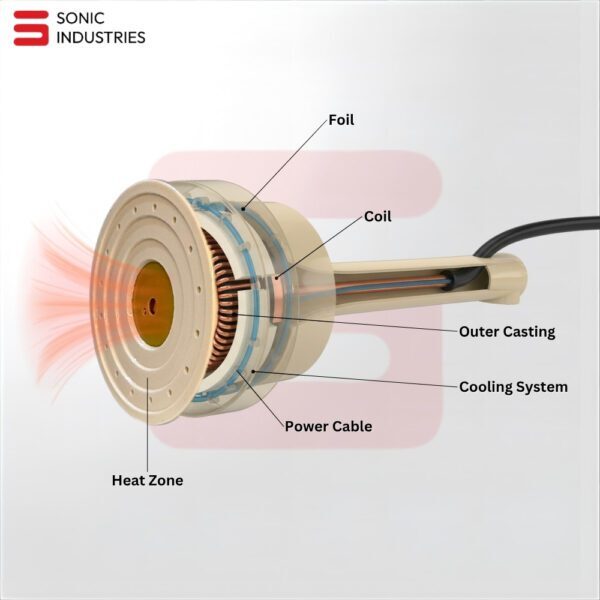

Induction sealingis anoncontact processthat uses anelectromagnetic fieldto heat an aluminum foil layer inside a cap Heres the process

Electromagnetic Induction The sealing head generates a magnetic field

Foil Heating The aluminum foil liner heats rapidly

Polymer Layer Melting The polymer coating bonds to the containers rim

Seal Formation Creates an airtight tamperevident seal

Advantages of this method

No adhesives or external heat sources needed

Works with filled containers without damaging contents

Safe for heatsensitive products

Food Beverage

Bottled water

Juices milk

Edible oils

Pharmaceuticals

Medicine bottles

Vitamin jars

Herbal supplements

Cosmetics

Creams lotions

Shampoos conditioners

Chemicals

Cleaning agents

Agrochemicals

100 Tamper Evidencefor consumer safety

Leak Preventionduring transport and storage

Extended Shelf Lifeby preventing oxygenmoisture ingress

Fast Return on Investmentthrough reduced product loss

Energy Efficiencywith air cooling and optimized electronics

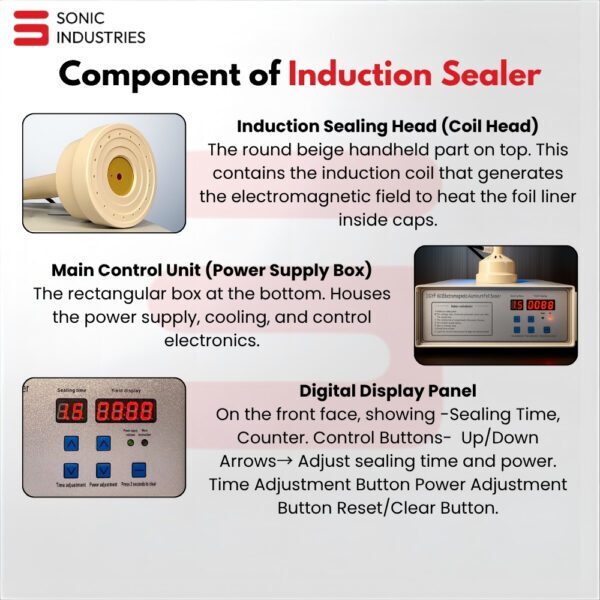

Every Sonic 600A is manufactured withindustrialgrade components including

Powdercoated MS frame for corrosion protection

Highefficiency induction coil for uniform heating

Heavyduty electronics for long operational life

This ensures the machine can withstandcontinuous highspeed operationin demanding factory environments

Power Onthe unit

Set Power Levelbased on cap size material

Align Containerunder the sealing head

Activate Sealcycle

Check Seal Qualitybefore packaging

DailyWipe machine exterior clean

WeeklyInspect power connections

MonthlyCheck cooling fan operation

YearlyFull calibration service

Sonic Industries 600A Sealing Unit

Power Cord

User Manual

Sample Induction Liners

Spare Fuse Kit

Q1What cap size does the 600A support

20100mm

Q2Can it seal glass jars

Yes with suitable liners

Q3Is it portable

Yes but built for industrial use

Q4How fast can it seal

Up to 70 containers per minute

Q5Does it require water cooling

No it uses efficient air cooling

Efficient Performance with Precise Control

The DGFY-600A induction sealing machine offers digital controls allowing operators to fine-tune the sealing time and power based on cap size and bottle material. Designed for high accuracy and repeatability, it can process up to 1200 bottles per hour, making it ideal for laboratories, production floors, or small-scale manufacturing environments.

Versatile and Compatible Applications

This machine seamlessly seals bottles made from plastic, glass, PET, PE, and HDPE that use aluminum foil laminated caps. Its adaptable design suits cap diameters from 20 to 100 mm and heights from 10 to 50 mm, catering to a wide variety of container shapes and packaging requirements across food, pharmaceutical, and chemical sectors.

Safety and User-Friendly Features

With built-in overheat and overload protection, a cooling fan, and clear LED operation and fault indicators, the DGFY-600A ensures safe and reliable operation. Its lightweight, portable build and ergonomic handheld mode maximize operator convenience while keeping operational noise below 65 dB.

FAQ's of Induction sealing machine Dgfy -600A 20 to 100MM:

Q: How does the DGFY-600A induction sealing machine work?

A: The DGFY-600A uses electromagnetic induction to generate heat, which bonds the aluminum foil laminated cap to the bottle mouth, creating an air-tight seal. The digital control panel allows you to adjust sealing time and power for optimal results.

Q: What types of bottles and caps are compatible with this machine?

A: It is compatible with bottles made from plastic, glass, PET, PE, and HDPE that use aluminum foil laminated caps. The cap diameter should be between 20 to 100 mm, and cap height should be 10 to 50 mm.

Q: Where is this induction sealing machine commonly used?

A: This machine is widely used in the food and pharmaceutical industries, as well as for sealing chemical products. Its precision and portability make it ideal for laboratory, packaging, and small-to-medium production lines.

Q: When should I replace the sealing coil or fuse?

A: You should replace the sealing coil or fuse if the machine displays faults, the sealing is inconsistent, or the unit does not power up. Both parts are available as replacements from the supplier.

Q: What are the key safety and operational features?

A: Key safety features include automatic overheat and overload cut-off, a built-in air cooling fan, and LED indicators for operational status and fault detection, ensuring user and device protection.

Q: What is the sealing speed and capacity of the DGFY-600A?

A: Depending on the operator and bottle size, the machine can seal 10 to 50 bottles per minute, reaching production capacities of up to 1200 bottles per hour in optimal conditions.

Q: How does using this machine benefit my business?

A: The DGFY-600A provides fast, accurate, and reliable sealing, minimizing product contamination and extending shelf life, which enhances product quality and production efficiency for food-grade and pharmaceutical applications.
