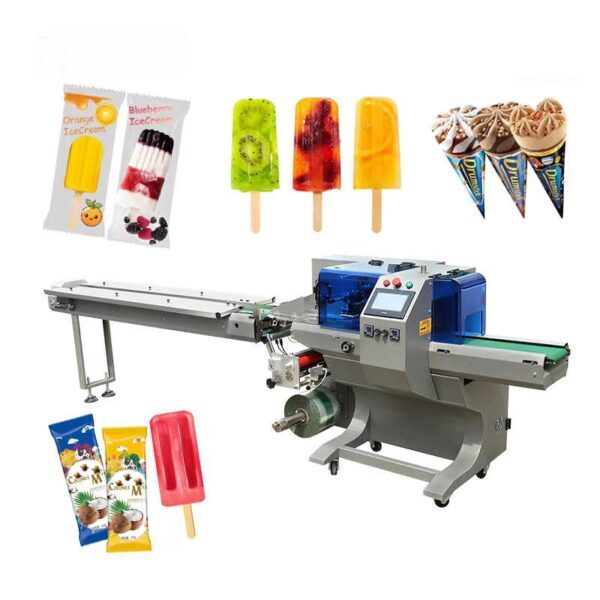

About Ice cream Horizontal Flow wrap Machine

Ice Cream Packing Machine

High-Speed Horizontal Wrapping for Ice Cream Bars, Cones, Sandwiches, and Cups

---

The demand for frozen treats continues to grow across the globe, with consumers seeking variety, taste, and safety in their ice cream purchases. For manufacturers and distributors, this means delivering ice cream that is not only delicious but also attractively and hygienically packaged. Enter the Ice Cream Packing Machine a high-speed, automatic horizontal wrapping machine built specifically for the unique requirements of ice cream bars, cones, sandwiches, popsicles, and cups.

Engineered for continuous, efficient, and sanitary packaging, this machine uses flexible film rolls to pack products tightly and securely in pillow packs or custom wrap formats. Its fast operation, modular construction, and compatibility with frozen environments make it a top choice for dairy brands, confectioners, and contract packers alike.

Whether you produce 5,000 or 50,000 units daily, this machine brings automation, accuracy, and efficiency into your production line while maintaining product integrity, appeal, and safety.

---

• Packs 60300 ice cream products per minute

• Compatible with cones, bars, cups, sandwiches, and novelties

• Food-grade stainless steel construction

• Integrated PLC with touchscreen HMI

• Eye-mark sensor for printed films

• Leak-proof, tight seal to prevent melting and contamination

• Optional nitrogen flushing, batch coding, hole punching

---

Specification	Details
Machine Name	Ice Cream Packing Machine
Product Types	Ice cream bars, cones, cups, sandwiches, popsicles
Packing Speed	60 300 packs per minute
Product Dimensions	L: 50250 mm; W: 20100 mm; H: up to 60 mm
Film Material	BOPP, PE, CPP, PET/PE, foil, laminated films
Sealing Type	Fin seal + end seals (pillow pack format)
Control System	PLC with HMI (touchscreen interface)
Film Feed System	Bottom or top reel, adjustable tension
Construction Material	SS304 (food-grade)
Power Requirement	220V/380V, 50Hz/60Hz, 35 kW
Compressed Air (pneumatic)	0.60.8 MPa (for jaw pressure and cooling units)

---

1. High-Speed Ice Cream Wrapping

With a packing capacity of up to 300 products per minute, the machine guarantees high productivity while maintaining sealing quality.

2. Stainless Steel, Food-Safe Build

SS304 construction ensures hygienic contact surfaces, easy cleaning, and corrosion resistance, essential in frozen food environments.

3. Touchscreen HMI with PLC Control

Easily manage sealing temperature, product length, speed, and product counters. Recipes for multiple ice cream SKUs can be saved.

4. Eye Mark Registration for Printed Film

Perfect alignment of branding and logos is ensured with a built-in photocell sensor that detects the eye mark on printed packaging material.

5. Adjustable Sealing & Cutting

The machines heat-sealing jaws adjust for different product shapes, ensuring air-tight, tamper-proof sealingeven at high speed.

6. Built-In Product Sensor

No product? No pack. The machine skips empty cycles, saving film and improving productivity.

---

This machine is suitable for a wide range of ice cream products and frozen desserts, including:

Product Type	Description
Ice Cream Bars	Rectangular bars with or without sticks
Ice Cream Cones	Cones with chocolate coating, nuts, or fillings
Ice Cream Sandwiches	Classic wafer or biscuit-based frozen treats
Ice Cream Cups	Small dairy-based dessert cups with lids
Popsicles / Kulfi	Traditional or modern frozen juice-based treats
Frozen Novelty Items	Branded and cartoon-shaped desserts for kids

---

• BOPP Transparent or printed for commercial wrapping

• CPP/PE Ideal for freezer storage

• Laminated Films Extended shelf life and premium finish

• PET/PE High-barrier films for high-end products

• Foil-based Film Used for chocolate-coated or sensitive bars

---

Add-On Module	Purpose
TIJ Printer	Inline batch coding and date printing
Hole Punching	For hanging products on retail racks
Nitrogen Flushing	To maintain freshness and shelf life
Zig-Zag Sealing Knife	Fancy tear-off finish for easy opening
Rejection System	Auto-rejects misaligned or unsealed packs
Cooling Conveyor	Ensures temperature retention post-packaging

---

Benefit	Result
High Output	Meet market demands during peak summer season
Consistent Pack Quality	Zero leakage, perfect branding, no contamination
Reduced Labor Costs	Fully automatedone operator can manage it easily
Long Shelf Life	Airtight seals protect against humidity and bacteria
Brand Visibility	Supports high-definition printed packaging film
Compliance Ready	Meets CE, GMP, FSSAI, and ISO standards
Cold Chain Friendly	Works reliably in refrigerated environments

---

Ice Cream Manufacturing Plants

Industrial producers of high volumes of single-serve cones, bars, and popsicles.

Private Label Dessert Brands

Small to mid-scale brands launching new ice cream SKUs needing professional wrapping.

Dairy & FMCG Co-Packers

Contract packers handling different client formats with quick changeover and hygiene needs.

Frozen Food Factories

Producers of frozen novelty items or sandwich desserts needing tamper-proof packaging.

---

This machine is built to last, but like any industrial system, regular maintenance ensures maximum uptime.

• Daily cleaning for product contact surfaces

• Weekly checks for film tension and sensors

• Monthly inspection of sealing elements

• Spare parts stocked and ready

• Remote support available via phone or video

• Operator training provided upon installation

---

Q1: Can the machine wrap both cones and bars?

Yes. With minor guide adjustments, you can pack bars, cones, or cups using the same base unit.

Q2: What if my product is fragile or sticky?

We offer soft-feed conveyors, Teflon-coated seal jaws, and cooling belts to avoid damage.

Q3: Can I print MRP and batch number inline?

Yes. Add a TIJ or inkjet coder for inline printing. Compatible with both plain and printed films.

Q4: What about cold chain compatibility?

The machine is designed with components that function reliably in cold or humid environments.

Q5: How do I change film rolls?

Film roll replacement is simpletakes less than 2 minutes with side-mounted rollers and tension controls.

---

• 1 Ice Cream Packing Machine (fully assembled)

• Product feeding conveyor

• Touchscreen control interface (HMI)

• Eye mark sensor + sealing system

• Basic spare parts kit

• Operational training manual

• Warranty card and remote service access

Advanced Packaging Technology

Integrated with a PLC touch screen and servo-driven controls, this horizontal flow wrap machine ensures accuracy, consistency, and reliability in packing. The intelligent fault diagnosis system and color HMI panel simplify operation, while PID-controlled temperature maintains perfect seals for various types of packing films and product consistency.


Versatile and Efficient Operation

Designed to handle a wide range of pack sizes and film materials, the machine features adjustable cut lengths (65-190 mm) and speeds (80-300 packs/min). Its stainless steel construction, combined with customizable settings and quick format changes, makes it suitable for manufacturers with high durability and easy maintenance.


Focused on Food Safety and Quality

Safety is paramount, with emergency stop buttons, safety guards, and interlock systems built into the design. The pillow pack and centre seal guarantee that each pack is hygienically sealed, preserving freshness and appearance - vital for the ice cream, confectionery, and frozen snack industries.
