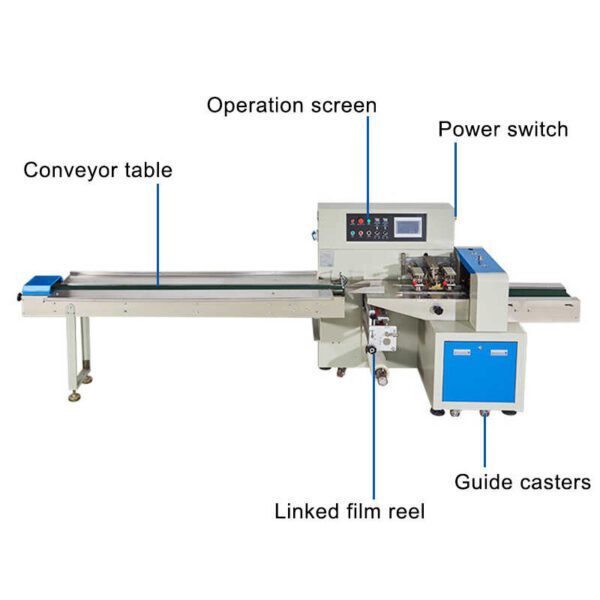

Horizontal Flow Wrap Machine

Name: Horizontal Flow Wrap Machine
Brand: SONIC INDUSTRIES
Price: 388466.325 INR
Availability: InStock

Price 388466.325 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Horizontal Flow Wrap Machine Specification

Product Type
Horizontal Flow Wrap Machine

Material
Stainless Steel

Capacity
40-350 packs per minute

Computerized
Yes

Automatic Grade
Automatic

Voltage
220V/50Hz or 380V/60Hz

Power
2.5 kW

Conveyer Length
2500 mm

Rotating Speed
Adjustable

Overlap Scope
30-70 mm

Shift Speed
Adjustable

Dimension (L*W*H)
4000 mm x 1000 mm x 1500 mm

Weight (kg)
Approx. 650

Color
Silver

Film Roll Diameter
Max. 320 mm

Film Feed
Automatic

Max. Film Width
400 mm

Noise Level
Less than 75 dB

Packing Material
OPP/CPP, OPP/PE, PT/PE, ALU-FOIL

Cutting Device
Rotary Cutter

Display Type
Touchscreen HMI

Control System
PLC Controlled

Compressed Air Requirement
0.6 MPa

Machine Application
Biscuits, chocolates, bakery, soap, medical items, and more

Operating Temperature
0~40C

Safety Features
Emergency Stop, Overload Protection

Sealing Type
Heat Sealing / Cold Sealing

Product Size Range
L 65-330 mm, W 30-110 mm, H 5-55 mm

Horizontal Flow Wrap Machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
27 Days

About Horizontal Flow Wrap Machine

Horizontal Flow Wrap Machine

HighSpeed Precision Packaging for Food FMCG and Industrial Products

TheHorizontal Flow Wrap Machineis a cuttingedge packaging solution designed for efficient continuous and hygienic wrapping of a wide variety of products It is widely used in industries such asfood and beverage pharmaceuticals hardware cosmetics and personal care

This versatile machine wraps items in pillowtype pouches creating airtight and tamperproof packaging that enhances product shelf life branding visibility and customer confidence Whether youre packagingbiscuits chocolate bars soaps bearings syringes switches ortoothbrushes this machine ensures a clean fast and consistent packing process with minimal human intervention

Its modular design PLCbased controls and compatibility with printed and plain films make it a preferred choice for medium to largescale production units

Specification Details

Machine Type Horizontal Flow Wrap Machine

Speed 50300 packs per minute depending on product

Product Dimensions L 40300 mm W 20120 mm H 570 mm

Film Roll Width Up to 450 mm

Packing Materials BOPP LDPE PET foil laminates PP

Sealing Type Center fin seal End crimp seal pillow type

Film Feeding Bottom or top feed adjustable tension system

Power Supply 220V380V 50Hz60Hz 35 to 55 kW

Control System PLC with HMI touchscreen

Construction Material SS304 product contact parts Mild steel frame

Compressed Air Requirement 0608 MPa

Film Alignment Photoelectric eye mark sensor

Product Feed System Manual or automatic infeed conveyor

1 HighSpeed Wrapping

Capable of packaging up to300 products per minute the machine is ideal for highvolume production lines without sacrificing accuracy or seal quality

2 Advanced PLC Control

Equipped with auserfriendly HMIandprogrammable logic controller PLC allowing operators to easily configure product length pack length sealing temperature and speed

3 EyeMark Registration System

An intelligentphoto sensorensures perfect alignment of printed packaging film with the product maintaining branding consistency and eliminating print misalignment

4 Versatile Product Handling

Supports a wide range of product shapes and sizes including solid semisolid and traybased items

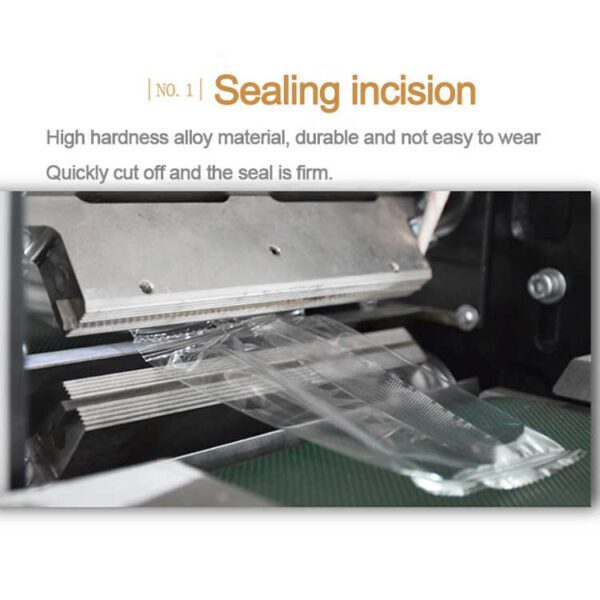

5 HighQuality Sealing

Strong clean and leakprooffin seals and end sealsusing adjustable temperaturecontrolled sealing jaws

6 Durable Build

Constructed withindustrialgrade materialssuch as stainless steel and powdercoated mild steel for long life and low maintenance

7 Quick Film Roll Change

Easytochange film rolls and tension adjustment make product changeover and maintenance fast and efficient

8 Compact Design

Occupies less floor space despite delivering high performance Suitable for factories with limited room or mobile setups

Food Industry

Biscuits cookies crackers

Chocolates energy bars granola

Breadsticks khakhra rusk

Candy bars toffees dry snacks

Bakery products in trays

FMCG Cosmetics

Soaps shampoo sachets

Toothbrushes

Hair oil pouches

Face wipes wet tissues

Cream and cosmetic kits

Hardware Industrial Products

Bearings switches fasteners

Electrical plug tops

Razor blade packs

Stationery items erasers pens markers

Toy components and puzzles

Pharmaceuticals Medical

Syringes swab packs

Bandages

Blister traybased items

Disposable kits

Mask packs

Attachment Function

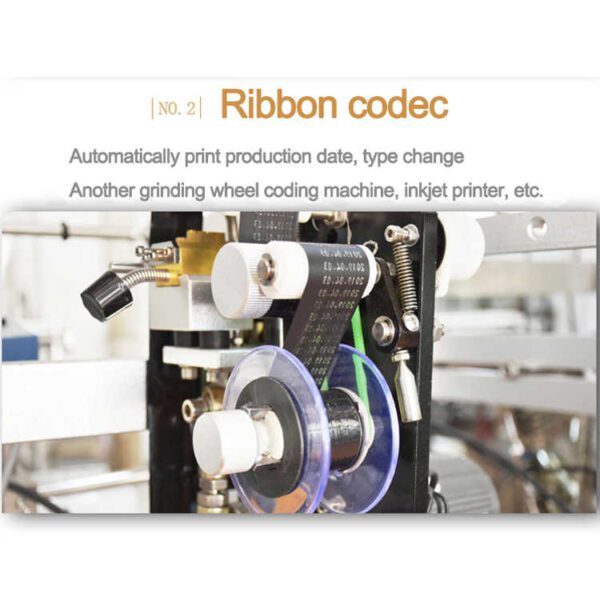

TIJInkjet Printer Date batch MRP QR or barcodes

Nitrogen Flushing System Extends shelf life prevents oxidation

Zigzag Cutting Knife Fancy tear packaging or perforation

Euro Hole Punch Hanger hole for retail display

Reject Conveyor System Removes incomplete or defective packs

Feeding Systems Autoalign and feed items into the wrapper

Benefit Result

Increased Productivity Up to 4x faster than manual packing

Improved Packaging Consistency All packs are uniform in size and appearance

Reduced Labor Costs One operator can handle the entire machine

Reduced Film Wastage Eyemark sensors and exact cutting reduce material loss

Enhanced Shelf Presence Tamperproof clean seals improve product appeal

Brand Protection Highspeed wrapping with print registration ensures logo accuracy

LongTerm Durability Industrialgrade parts for 247 operation

Q1 What film types are compatible with this machine

The machine works withBOPP LDPE laminated film PET and heatsealable films

Q2 Can I pack multiple items in a single pouch

Yes with the appropriate feeding system or collator you can group multiple items eg two soap bars or three pens

Q3 Can I use my own printed film with branding

Yes Thephotoeye mark sensorensures your branding and artwork are perfectly centered on each pack

Q4 Does this machine require compressed air

Yes It typically needs0608 MPafor sealing pressure and autoeject systems if pneumatic

Q5 Is it suitable for small and large products

Yes The machine is highly adjustable and can accommodate a wide range of product sizes

Q6 What is the downtime for product changeover

Typically less than15 minutes especially with presaved packaging recipes via the touchscreen control

1 Horizontal Flow Wrap Machine fully assembled

Touchscreen HMI PLC system

Film roller and tension assembly

Spare parts kit heaters belts seals

User manual and SOP

Onsite installation and training optional

Advanced Performance & Versatility

This machine is engineered for flexibility, managing various product dimensions and packaging materials. Its powerful rotary cutter and adjustable conveyor make it easy to switch between product types, allowing seamless packaging of food, medical, or personal care items. The automatic film feed and overlapping capabilities ensure tight wrapping for better product protection.

User-Friendly Control & Safety

Equipped with a touchscreen HMI and PLC control, the machine offers intuitive operation and real-time monitoring. Safety is paramount, featuring overload protection and an emergency stop system to safeguard personnel and equipment. Adjustable speed and temperature profiles maintain optimal packaging quality for different materials and conditions.

Efficiency and Hygienic Packaging

Built from stainless steel, the machine upholds stringent hygiene standards, making it ideal for food and healthcare packaging. With a high packing capacity and low noise output, it supports high-volume production needs without compromising workplace comfort. Automated processes streamline workflow, reducing labor and boosting consistency.

FAQ's of Horizontal Flow Wrap Machine:

Q: How does the Horizontal Flow Wrap Machine ensure product safety during operation?

A: This machine is designed with multiple safety features, including an emergency stop button and overload protection, minimizing operational risks. Its stainless steel body also contributes to hygienic processing, which is especially crucial for packing food and medical items.

Q: What types of packing materials are compatible with this horizontal flow wrap machine?

A: It supports a wide array of packaging films such as OPP/CPP, OPP/PE, PT/PE, and ALU-FOIL, giving users flexibility to choose the material best suited for their product's protection and shelf life requirements.

Q: When should you use heat sealing versus cold sealing with this machine?

A: Heat sealing is recommended for products that can withstand higher temperatures, ensuring a strong, secure seal, while cold sealing is ideal for items sensitive to heat, such as chocolates or certain medical products, to avoid melting or damage.

Q: Where can the horizontal flow wrap machine be utilized effectively?

A: This machine is suitable for manufacturers and suppliers in sectors like food, bakery, pharmaceuticals, personal care, and household goods. Its installation is ideal in industrial environments that demand reliable, high-speed packaging with strict hygiene controls.

Q: What is the typical process for changing product sizes or film materials?

A: Operators can easily adjust the product size range, film width, and other parameters via the touchscreen HMI and PLC system. The machine is engineered for quick changeovers, minimizing downtime and accommodating varied packaging needs efficiently.

Q: How does automatic film feed benefit the packaging operation?

A: The automatic film feed not only increases packaging speed and consistency but also reduces manual intervention, thereby lowering labor costs and improving workflow accuracy, especially across large production runs.

Q: What are the key benefits of using this machine for your packaging needs?

A: This machine enhances operational efficiency, ensures consistent package quality, reduces noise exposure, and meets hygiene standards. Its automated, adjustable features support diverse product applications, making it a valuable investment for businesses targeting productivity and quality.
