FR-900 Band sealing Machine SS Eco Vertical

About FR-900 Band sealing Machine SS Eco Vertical

TheSonic SS BodyContinuous Band Sealer Heavy Duty Modelis a high-performance pouch sealing solution engineered for large-scale packaging operations. Whether youre in thefood, chemical, cosmetics, or pharma sector, the quality of the seal plays a critical role in ensuring product longevity, safety, and brand integrity.

Unlike standard band sealers, thisheavy-duty model features a complete stainless steel body, making it corrosion-resistant and compliant with food-grade and pharmaceutical hygiene standards. Its designed for24/7 operations, offering exceptional throughput without compromising on quality or safety.

The machine features anadjustable conveyor, variable speed controls, digital temperature settings, and reinforced Teflon beltsmaking it suitable for different pouch types and sizes. It also offersvertical sealingconfiguration, ideal for liquids, semi-liquids, and heavy or bulkier products that require upright packaging.

This model is trusted byfactories, contract packaging units, export houses, spice manufacturers, and chemical companies, and its built to last even in tough industrial environments.

---

Full Stainless Steel Construction

• Anti-rust, anti-corrosive material ideal for cleanroom and food-grade environments

• Easy to sanitizeperfect for FSSAI, FDA, and GMP-compliant packaging lines

Heavy-Duty Design

• Reinforced components for long-term operation without breakdowns

• Withstands continuous use in high-output settings

• Engineered to seal up to1518 pouches/mindepending on size & material

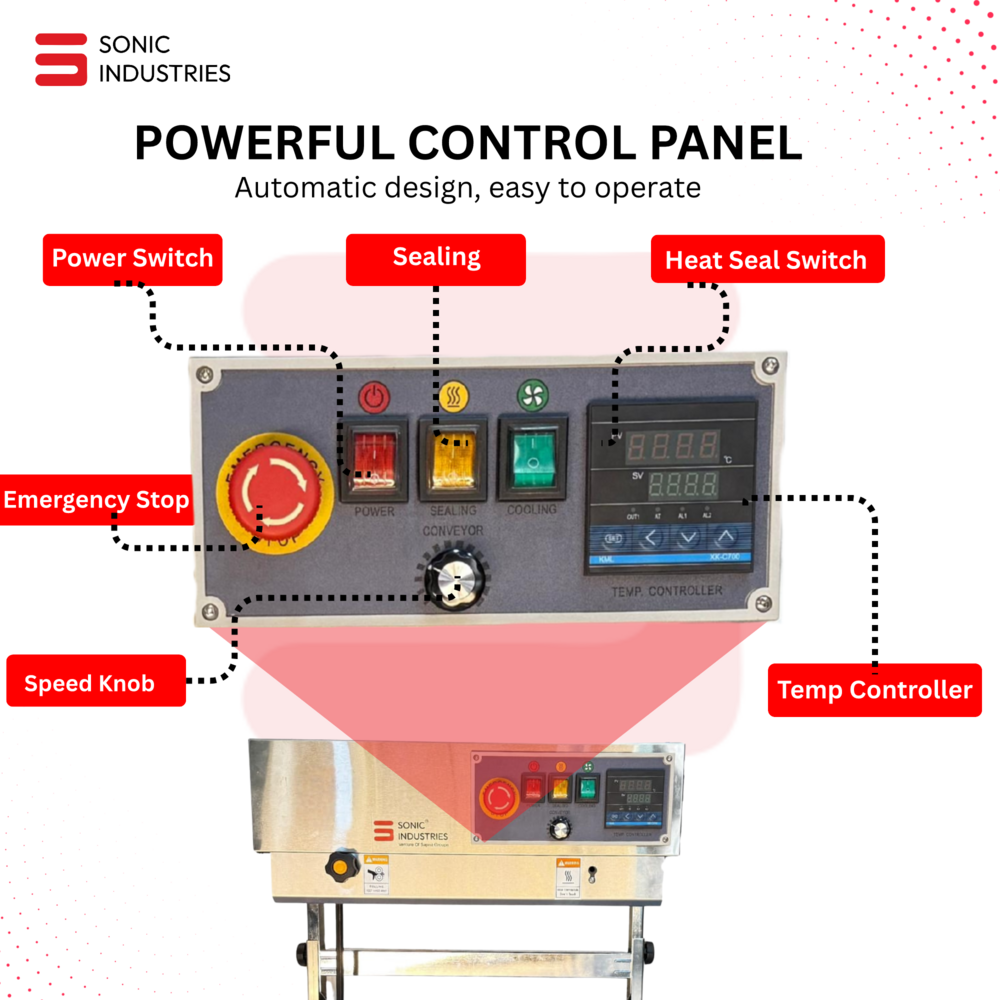

Adjustable Sealing Temperature & Speed

• Digital thermostat allows precise temperature control (0C300C)

• Speed control knob adapts sealing output to match pouch thickness and content

Vertical Sealing Orientation

• Ideal for sealingliquid, paste, and powder pouchesin an upright position

• Prevents spillage and offers gravity-friendly handling for heavy pouches

High-Speed Conveyor with Load-Bearing Support

• Conveyor height and width adjustable for varying pouch dimensions

• Supports 1-3kgpouch weight with heavy-duty build quality

Consistent, Leak-Proof Sealing

• Uniform sealing pressure ensures strong, tamper-proof seals

• Works with multiple materials: LDPE, HDPE, laminated films, foil, paper-poly, etc.

Minimal Maintenance, Easy Cleaning

• Quick access to components for belt replacement or roller cleaning

• Teflon-coated sealing belts reduce sticking and extend belt life

Safety First

• Overheat protection system

• Emergency stop button

• Shock-proof stainless build

---

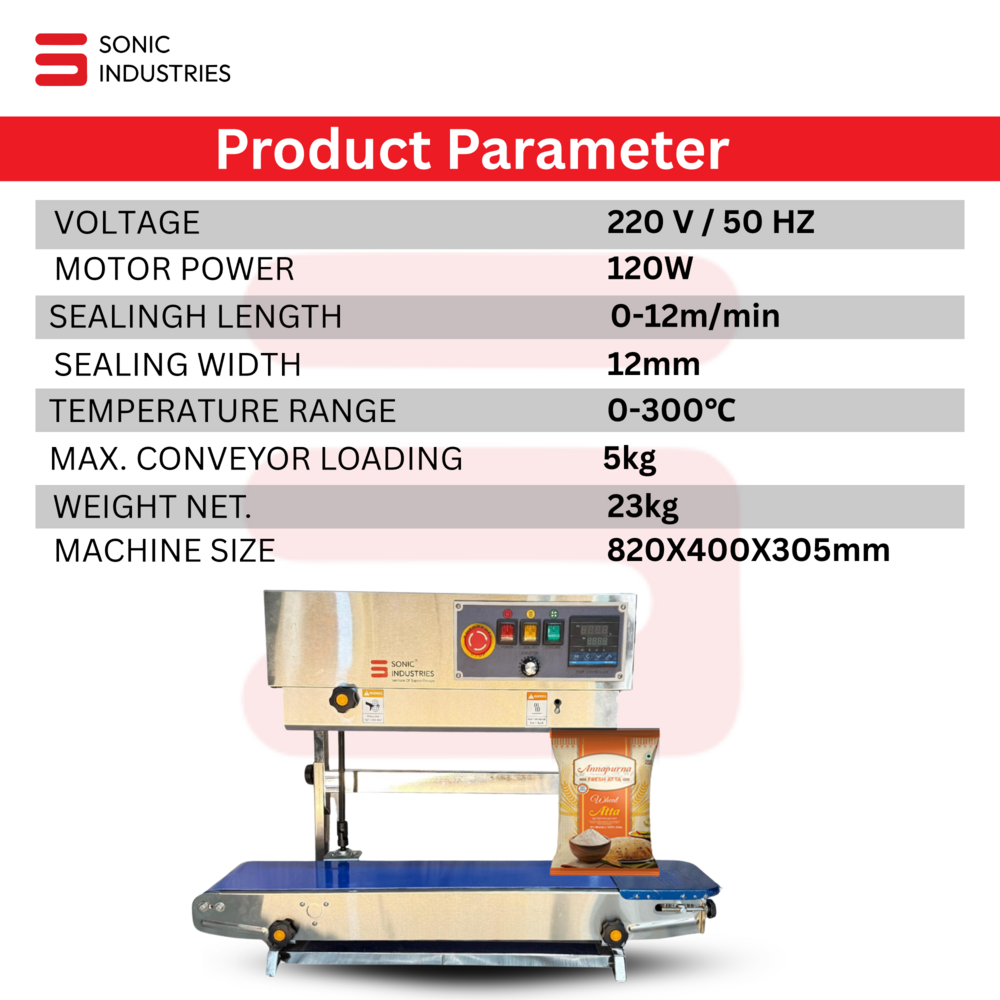

SS Body Continuous Band Sealer Heavy Duty Model

Parameter	Details
Model	SS Body Continuous Band Sealer Heavy Duty
Body Material	304-Grade Stainless Steel
Sealing Speed	012 meters/min (adjustable)
Sealing Width	610 mm
Conveyor Load Capacity	3 kg
Max Temperature	Up to 300C
Voltage	220V / 50Hz (Single Phase)
Power Consumption	650W850W
Sealing Type	Vertical Continuous Sealing
Pouch Types Supported	LDPE, HDPE, BOPP, Foil, Laminates, etc.
Machine Dimensions	Approx. 860mm x 420mm x 365mm
Net Weight	Approx. 3035 kg
Cooling System	Air cooling with aluminum fin rollers

---

The versatility of this machine makes it ideal for various industries:

Food Industry

• Spice powders, masala pouches, grains, rice, flour, snacks, sauces, etc.

Pharmaceuticals

• Herbal powders, tablets, capsules, disinfectant liquids, IV bags

Cosmetics & Personal Care

• Lotions, creams, powders, liquid soaps, herbal extracts

Chemical Industry

• Detergents, agro-chemicals, fertilizers, and other granulated/powdered chemicals

Beverages

• Liquid drink sachets, syrups, concentrates

Retail & E-Commerce Packaging

• Promotional pouches, sample kits, sealed product packs for resale

---

Model	Body Material	Sealing Orientation	Application Suitability
FR-900 Eco (MS Body)	Mild Steel	Vertical	Entry-level for dry products only
FR-900 Eco (SS Body Not for LD & PP)	Stainless Steel	Vertical	Mid-range but limited to specific films
SS Body Heavy Duty (This Model)	Stainless Steel	Vertical	All film types; liquids & heavy pouches
FR-900 Horizontal Heavy Duty Model (SS)	Stainless Steel	Horizontal	Solid items; horizontal pouch design

---

1. Can this machine seal LDPE and PP pouches?

Yes. Unlike the SS Eco Model (which doesnt support LD/PP), thisHeavy Duty modelis compatible withLDPE, PP, and laminated pouches.

2. Is the temperature adjustable?

Yes, up to300Cusing a built-in thermostat controller.

3. Can it seal liquid-filled pouches?

Yes. The vertical sealing design is perfect forliquids, pastes, and semi-fluids.

4. How often do I need to change the Teflon belt?

With regular use, belts may last68 months. Replacement is easy and affordable.

5. Is it suitable for food-grade packaging?

Absolutely. Its made fromfood-grade stainless steel(SS 304), ideal for hygienic operations.

6. What is the power requirement?

It runs on220V single-phase powerwith a typical consumption of650W850W.

7. Does it require compressed air?

No. This is anon-pneumatic modeland doesnt require air compressors.

Reliable and Energy-Efficient Performance

The FR-900 Band Sealing Machine SS Eco Vertical operates at 650W, combining high sealing capacity with energy efficiency. It features a durable conveyor belt, allowing for the fast and stable sealing of up to 300 packs per hour. The stainless steel body ensures longevity, while the eco mode helps reduce power consumption, making it an environmentally-friendly choice for continuous operations.


Automatic Vertical Sealing for Versatile Packaging

Engineered for vertical sealing, this machine is perfect for stand-up pouches and bags. The adjustable temperature range from 0C to 200C and a consistent 8 mm sealing width guarantee strong, professional heat seals on a variety of materials. Its automatic operation and user-friendly interface streamline the packaging process while maintaining quality.
