Fr-900 Band sealing machine MS Eco 5Kg vertical band sealer

Send Inquiry

Request To Call Back

Fr-900 Band sealing machine MS Eco 5Kg vertical band sealer

Name: Fr-900 Band sealing machine MS Eco 5Kg vertical band sealer
Brand: SONIC INDUSTRIES
Price: 16567.2 INR
Availability: InStock

Price 16567.2 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

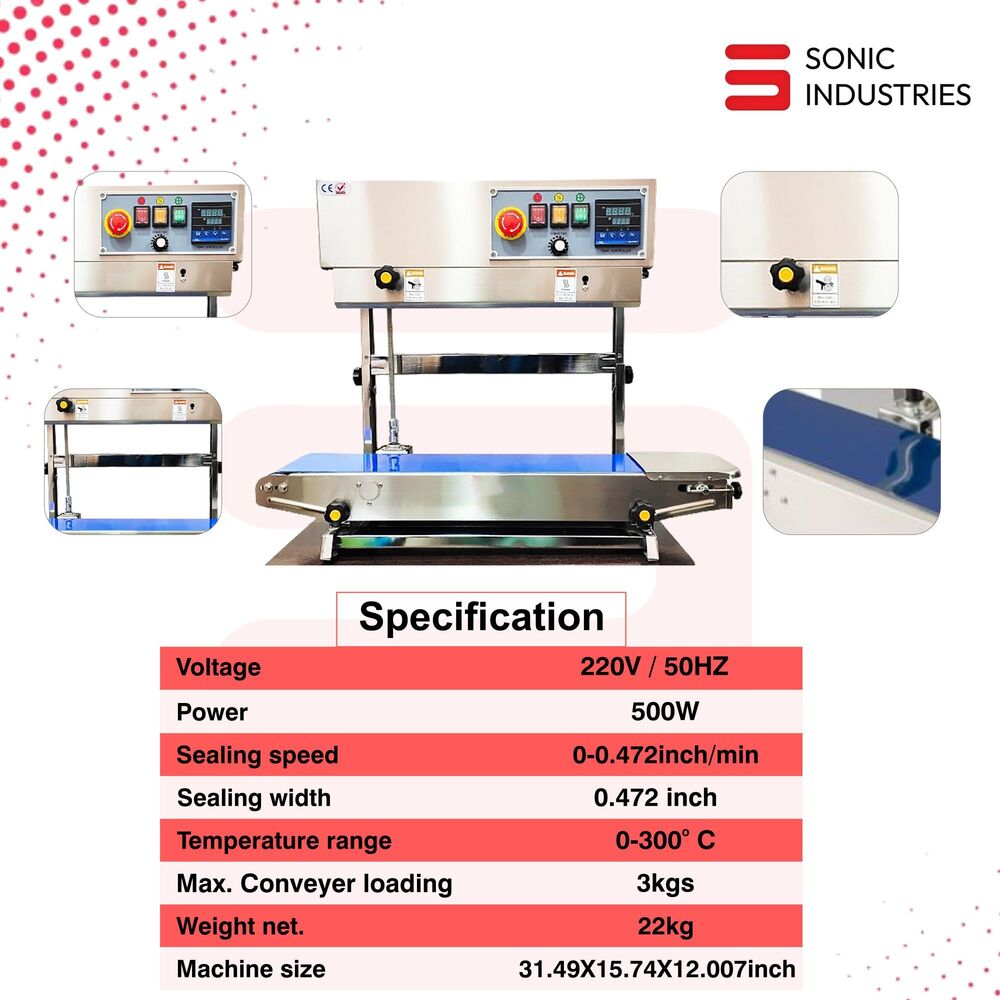

Fr-900 Band sealing machine MS Eco 5Kg vertical band sealer Specification

Voltage
220V, 50Hz

Sealing Type
Heat sealing

Packaging Speed
1500-1800 pouches/hr

Production Capacity
Up to 5kg pouch load

Seals Type
Flat seal

Power
500 W

Weight
Approx 26 kg

Filling Capacity
1 to 5 kg

Automation Grade
Semi Automatic

Type
Vertical Band Sealer

Application
Bag/Pouch Sealing

Color
Grey/Blue (as per image)

Accuracy
Standard

Dimension (L*W*H)
860 x 420 x 360 mm

Packaging Material
LDPE, laminated film

Sealing Speed
0 to 12 m/min

Driven Type
Electric

Condition
New

Sealing Length
Continuous

Pouch Orientation
Vertical sealing

Mounting Type
Vertical

Conveyor Height
Adjustable

Operation
Continuous duty

Motor Type
Induction motor

Cooling System
Fan cooled

Temperature Range
0 to 300C

Control Panel
Front-mounted

Belt Material
Heat-resistant

Feet Type
Rubber grip

Phase Type
Single Phase

Sealing Width
12 mm

Body Material
MS powder coated

Print Option
Without printer

Fr-900 Band sealing machine MS Eco 5Kg vertical band sealer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
5 Days

About Fr-900 Band sealing machine MS Eco 5Kg vertical band sealer

Feature	Description
Product Name	FR-900 MS Eco Vertical Band Sealing Machine
Machine Type	Continuous Band Sealer
Orientation	Vertical Type
Capacity	Suitable for pouches up to 5 Kg
Body Material	Mild Steel (MS)
Sealing Speed	Up to 12 m/min (Adjustable)
Temperature Range	0 ï 300C Adjustable
Power Supply	220V, 50Hz
Compatible Materials	PE, PP, Laminated, and Foil Pouches
Application	Food, Pharma, Chemical, and Packaging Industries

Robust and Efficient Sealing Solution

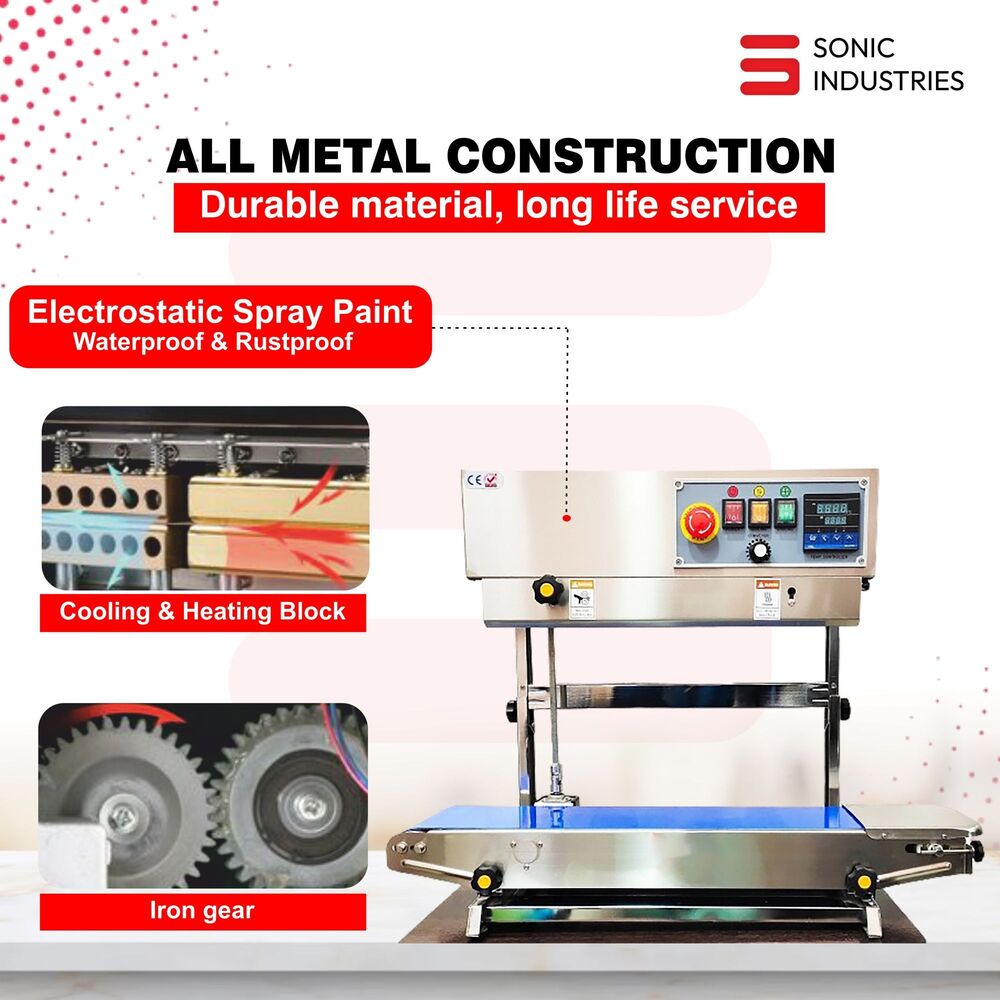

Built with a powder-coated mild steel body and advanced cooling system, the FR-900 is engineered for durability and reliability. Its induction motor and heat-resistant belt enable continuous, high-speed operation for sealing up to 1,800 pouches per hour. The vertical design and adjustable conveyor height accommodate various pouch sizes, streamlining the sealing process for medium-scale production lines.

Versatile Application and Easy Controls

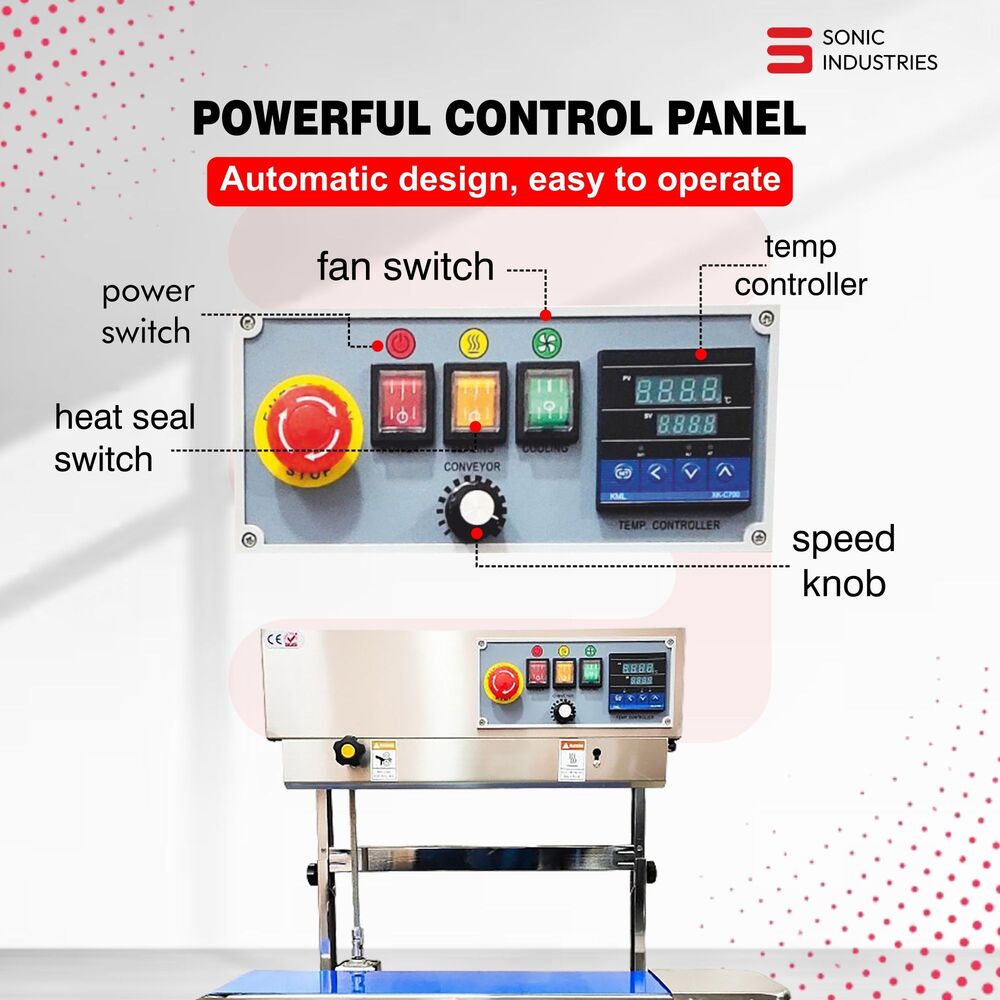

Ideal for sealing LDPE and laminated film bags in a vertical orientation, this machine is suited for packaging food, pharmaceuticals, and more. The intuitive front-mounted control panel allows precise adjustment of sealing temperature and speed, catering to diverse packaging requirements. Its compact footprint and rubber grip feet ensure stable placement in any production environment.

FAQ's of Fr-900 Band sealing machine MS Eco 5Kg vertical band sealer:

Q: How does the FR-900 Band Sealing Machine operate?

A: The FR-900 operates as a continuous-duty, semi-automatic vertical band sealer. Simply place the pouch on the adjustable conveyor, set the desired temperature and speed using the control panel, and the heat sealer will automatically seal the pouches as they move through the machine.

Q: What materials can be sealed with this band sealer?

A: This machine is compatible with LDPE (Low-Density Polyethylene) and laminated film bags. It is designed for flat heat sealing of pouches containing a filling capacity between 1 to 5 kg.

Q: When should I use a vertical band sealer like the FR-900?

A: A vertical band sealer is ideal when you need to seal bags or pouches containing granular or powder products that may spill if sealed horizontally. Examples include grains, snacks, and spices.

Q: Where can the FR-900 Band Sealer be installed?

A: With its compact dimensions and rubber grip feet for stability, the machine can be installed on any flat surface in factories, packaging units, or commercial packaging facilities throughout India.

Q: What is the sealing speed and production capacity of the FR-900?

A: The FR-900 can seal at adjustable speeds ranging from 0 to 12 meters per minute, processing approximately 1,500 to 1,800 pouches per hour depending on pouch size and operator efficiency.

Q: What are the benefits of using this band sealer?

A: This model offers robust construction, consistent flat seals, adjustable settings, and compatibility with a range of packaging materials, supporting efficient, high-volume packaging with minimal maintenance.

Q: How do I adjust the conveyor height for different pouch sizes?

A: The machine features an adjustable conveyor height mechanism. Simply use the provided adjustment knobs or levers to raise or lower the conveyor, ensuring the pouch aligns perfectly with the sealing element for optimal sealing results.
