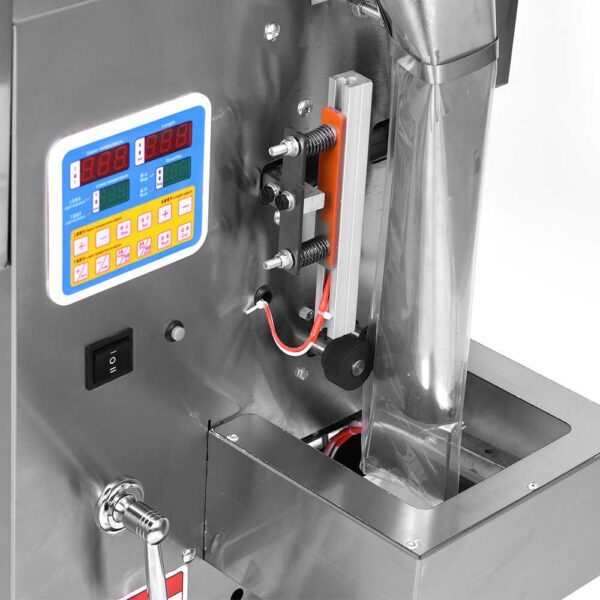

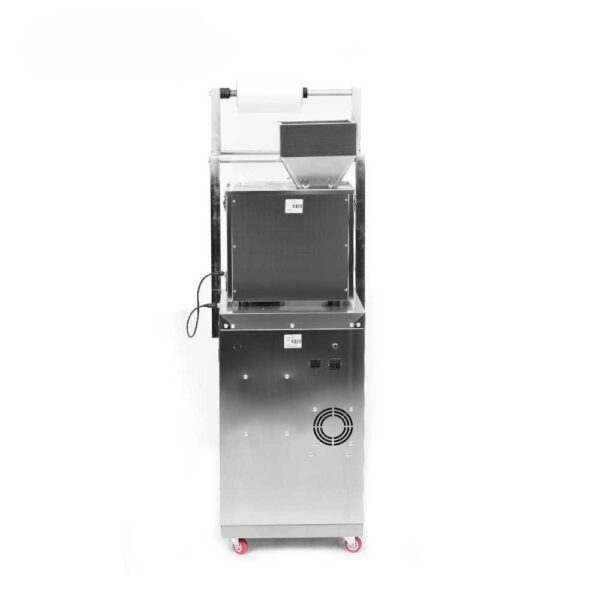

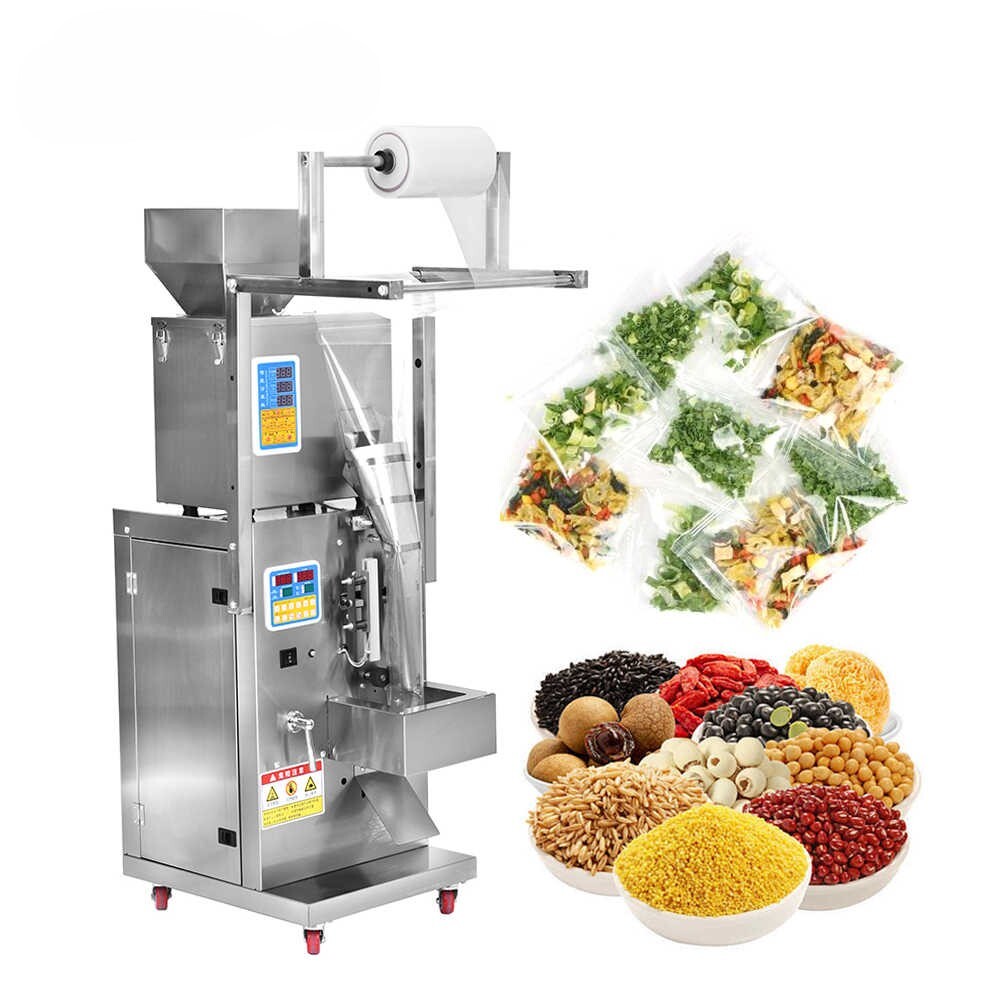

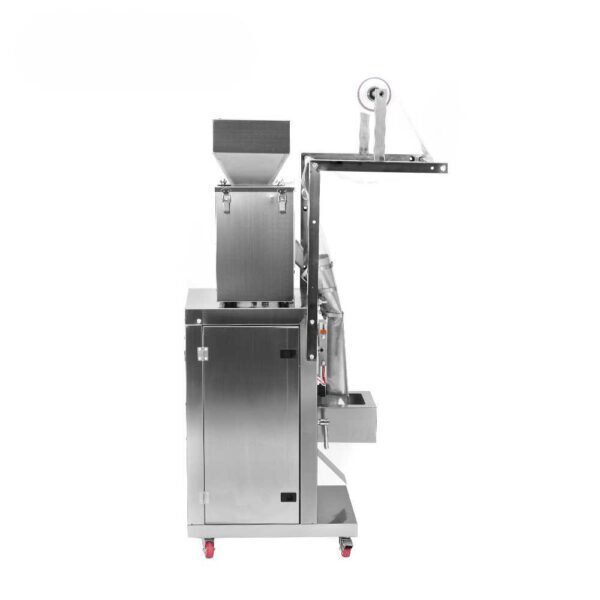

About 10 to 100 grams powder filling machine

Auger Powder Packing Machine

Introduction

TheAuger Powder Packing Machinerepresents the future of powder packaging automationdelivering unmatched precision hygiene and efficiency It is designed specifically for packingfine semifine and nonfreeflowing powdersinto pouches with exact weight and sealing integrity With industries becoming more qualityconscious and aiming for faster turnaround times this machine has become a necessity in segments like food processing pharmaceuticals cosmetics and chemicals

This machine offers a onestop solution for measuring filling pouch forming and sealing It leveragesservocontrolled auger screw technologyto ensure each pouch is filled with accurate weight even for cohesive and dusty powders like haldi turmeric flour milk powder protein powder and herbal formulations It operates with minimal supervision helping manufacturers scale operations while reducing manpower dependency

What is anAuger Powder Packing Machine

AnAuger Powder Packing Machinecombines two primary systems

Aservodriven auger fillerthat measures powder based on volume through a rotating screw mechanism

AVertical Form Fill Seal VFFSsystem that forms pouches from a roll of film fills them with powder and seals them

Auger machines are ideal for powders with poor flow characteristics The dosing system uses the screw rotation to maintain consistent weight while the VFFS ensures professionalquality sealing and aesthetics This makes it far superior to manual or semiautomatic powder filling alternatives

Key Features

ServoControlled Auger Filler

A hightorque servo motor rotates the auger screw at controlled speeds ensuring the product is dispensed precisely every time It eliminates fluctuations and inconsistencies even for light and sticky powders

Intelligent PLC HMI Interface

A fullcolor touchscreen interface allows operators to control every aspect of the machine Fill weight pouch dimensions temperature and sealing time can all be set digitally Recipes for different products can be saved for faster changeovers

Automatic Film Handling and Pouch Forming

Rollfed film is shaped into a pouch sealed on one side vertically and filled from the top After filling horizontal sealing and cutting operations are done automatically

Sanitary Construction SS304316

The machine frame hopper and productcontact surfaces are made of stainless steelmaking it compliant withGMP FDA and food safety norms SS316 is optional for highly sensitive powders like infant nutrition or pharma mixes

Dust Control Features

For dusty powders like talcum chili or milk powder the machine can be fitted with an optionaldust extractor system keeping the work area clean and preventing product loss

High Accuracy with Minimal Waste

The auger system deliversfilling accuracy of 12 significantly reducing overfilling which saves raw materials over long production cycles

Technical Specifications

Feature Specification

Filling Capacity 10g 1kg customizable up to 5kg

Speed 20 50 pouches per minute

Accuracy 12

Film Width Up to 420 mm

Pouch Width 50 200 mm

Pouch Length 60 300 mm

Pouch Types Center Seal 3Side Seal Gusset Pillow

Power Requirement 220V440V 3 Phase 5060Hz

Power Consumption 2 4 kW

Air Pressure Requirement 6 8 CFM 6 Bar if using pneumatic jaws

Machine Structure SS304 SS316 Optional

Control System PLC HMI Touchscreen

Optional Features Screw Elevator Printer Nitrogen Flushing

Product Applications

Food Industry

Spices Turmeric Chili Coriander

Flours Wheat Maida Besan

Coffee and Cocoa Powders

Protein Powders and Nutrition Mixes

Baking Soda and Icing Sugar

Chemical Industry

Talcum Powder

Washing Powder and Soap Granules

Agrochemical Powdered Formulations

Pharmaceutical Healthcare

Ayurvedic Herbal Powders

Nutraceutical Powder

Medical Protein Supplements

Vitamin Formulations

Cosmetics

Compact Face Powders bulk

Herbal Face Packs

Baby Powders

Dairy Industry

Milk Powder

Whey Powder

Infant Formula Powders

Working Process

Powder FeedingThe product is fed into the top hopper manually or via screw elevator

DosingThe servo motor rotates the auger screw to dispense the exact weight

Pouch FormingLaminated film is pulled over the forming collar to shape the pouch

Vertical SealingThe pouch is sealed along the side

FillingProduct is filled into the pouch through the forming tube

Horizontal Sealing and CuttingThe top is sealed and the pouch is separated

OutputFinal pouch drops onto the takeaway conveyor

AddOn Features

Screw Conveyor ElevatorAutomatic feeding of powder to the hopper

Dust Extraction UnitControls airborne particles in the work area

Batch Coding PrinterTIJ or ribbon printer for batchMRPdate

Nitrogen FlushingFlushes nitrogen to increase shelf life ideal for dairy spices

Zipper Pouch SupportFor resealable pouches with tear notch

Takeaway ConveyorStreamlines output collection to box or cartoner

Benefits

Benefit Description

Accuracy Servo motor controls auger for precision dosing

Hygiene SS304316 body for food and pharma compliance

Easy Operation Touchscreen control with memory setting

Multiproduct Capability One machine packs a wide variety of powders

Fast Changeover Quick toolless part change

Consistent Output Maintains same seal and fill quality throughout

Reduced Labor Fully automatic requires 1 unskilled operator

Cost Saving Less material wastage and better yield

Advanced Control and Superior Filling Accuracy

Equipped with a digital PLC and intuitive HMI touch screen, this powder filling machine delivers precise filling within a 1% accuracy range, ensuring consistent product quality. Its auger filling system and servo or stepper motor drive guarantee reliable and repeatable performance even with varied product flows.


Versatile Application Across Industries

Designed for flexible use in food, pharmaceutical, chemical, cosmetics, and agricultural sectors, this machine handles powders of all types and supports multiple packaging mediums like plastic, glass, paper, PET, and aluminum foil. Hopper capacity and filling range make it ideal for small to mid-batch production.


Effortless Cleaning and Enhanced Safety

With an easy-to-dismantle, tool-less design, routine cleaning and maintenance are fast and straightforward. Enhanced safety features, including emergency stop, overload protection, and interlock systems, ensure a secure operating environment for your team.
