About Switch Packaging machine

Automatic Swtich Packing Machine

HighSpeed Automated Packaging for Electrical Switches Sockets Hardware Components

TheAutomatic Switch Packing Machineis a highefficiency precisionengineered packaging system specifically designed forelectrical switches sockets plug tops MCBs and similar hardware items With growing demands for better product presentation tamperproof sealing and efficient production manufacturers of electrical components are increasingly turning to automation to enhance productivity and reduce labor costs

This machine offers afullyautomated packing solution combining advanced servodriven controls smart sensors and PLCbased operation to deliver neatly sealed pouches or wrappers for single or multiple switch units Built with durable materials and foodhardwaregrade contact surfaces it is wellsuited for continuous operation in industrial packaging lines

Whether youre packagingmodular switches surface switches switch plates or plug components this machine ensuresaccurate counting clean presentation and secure sealingready for direct retail or wholesale dispatch

Fully Automatic Operation

From feeding to sealing the entire packing process is handled without manual intervention increasing throughput while reducing human error and labor dependency

Intelligent PLC Control System

Equipped with a smartProgrammable Logic Controller PLCandHMI touchscreen this machine gives users total control over parameters such as product size pack length sealing time speed and batch coding

HighSpeed Packaging

Depending on the size of the switch and the required packing configuration single or multiple units the machine can achieve speeds of60200 packs per minute making it ideal for bulk production lines

Versatile Product Handling

Can accommodatedifferent sizes and types of switches such as

Modular switches

Toggle switches

Socket outlets

MCBs

Electrical faceplates

Switch panels and kits

Photoelectric Sensor with Eye Mark Control

The builtinphoto sensorensures printed film registration meaning your branded or colorprinted film aligns perfectly with every product enhancing shelf visibility and branding

Durable IndustrialGrade Build

Made fromheavyduty steel and SS304 components the machine is built to last in tough factory conditions The packaging path is designed to minimize jamming misalignment and wear

Compact Modular Design

Fits easily into existing production lines Its modular nature also supports future upgrades such as nitrogen flushing labelers or barcode printers

Specification Details

Machine Type Horizontal Flow Wrap Vertical Pouch Packaging

Speed 60 200 packs per minute

Product Size Range Length 40150 mm Width 20100 mm Height up to 60 mm

Film Type BOPP PE LDPE laminated film printed film

Sealing Type Center seal with end crimp pillow pouch

Power Supply 220V380V 5060Hz 35kW

Drive System Servo motor pneumatic actuators

Control System PLC HMI touchscreen

Sensors Eye mark product presence temperature sensor

Machine Material SS304 contact parts powdercoated frame

Packing Material Width Up to 400 mm

Compressed Air 0608 MPa

TheAutomatic Switch Packing Machineis tailored for a range of hardware and electrical packaging needs

Electrical Hardware

Modular switches

Electric sockets

Plug tops

Switchboards

Twoway switches

Miniature circuit breakers MCBs

Combination switch units

General Hardware

Plastic fitting accessories

Wall mounting kits

Screws and fasteners

Cable ties

Wire connectors

AddOn Module Purpose

TIJ Batch Coder Prints MRP batch number and manufacturing date

Counting System Autogroups multiple switch units in one pack

Hole Punching Unit Adds a Eurostyle hanger hole for retail display

Label Applicator Adds stickers or barcodes on finished packs

Reject Conveyor Automatically ejects defective or underweight packs

Nitrogen Flushing Prevents oxidation or corrosion in certain components

Benefit Business Impact

Faster packaging process Increased daily output with reduced labor

Lower material wastage Exact cutting and minimal film use

Uniform product presentation Better shelf appeal and professionalism

Supports printed packaging Branding consistency on every pouch

Ready for bulk dispatch Easily counted stacked and boxed

Reduces packaging errors Automated inspection and rejection systems

DailyWipe sealing jaws and film feed rollers

WeeklyInspect sensors HMI calibration

MonthlyGrease mechanical components check film tension system

ServiceAvailable with warranty spares and onsite support

Q1 Can the machine pack different switch sizes

Yes Its adjustable for various sizes and types using changeable guides and programmable recipes

Q2 Can I use printed film with my logo

Absolutely The eye mark sensor aligns the film precisely so your logo or branding stays centered

Q3 How many switches can it pack in one pouch

Depending on switch size you can configure 1 to 5 or more per pouch We also offer a counting collator system

Q4 Is it suitable for export packaging

Yes The machine produces tamperproof exportready packaging suitable for all markets

Q5 How do I change product size or packaging material

Via the touchscreen HMI interface Settings can be saved as recipes for quick changeovers

Fully assembled Automatic Switch Packing Machine

Touchscreen HMI Control Panel

Basic toolkit and spare sealing elements

Installation testing and training manual

12month warranty and AMC options

Remote and inperson support team

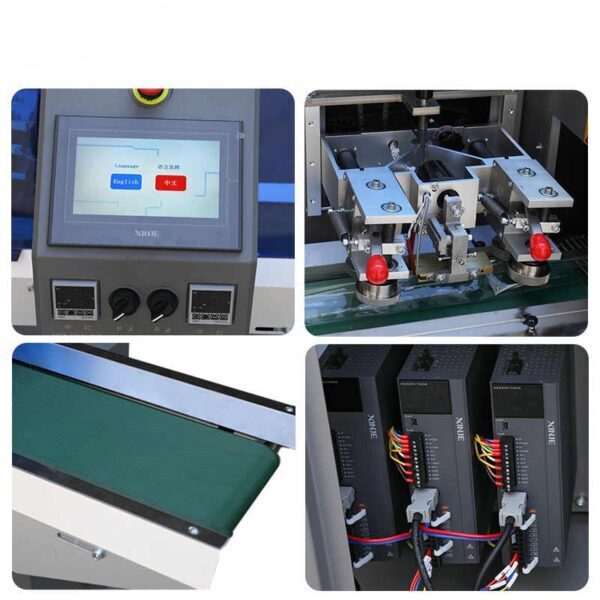

Advanced Control System for Reliable Operation

This packaging machine utilizes a PLC touch screen and digital display, making adjustments straightforward and providing real-time data for increased efficiency. The computerized automation, along with adjustable speed and belt conveyor feeding, ensures precise and consistent packaging for switches and small electrical items.


High Efficiency and Durability

Crafted from stainless steel and capable of delivering 30-50 packs per minute, the machine supports demanding production requirements. Its robust build and advanced power system (2 kW, 220 V) promise long-term reliability, optimum performance, and hygienic operation, making it a prime choice for the electrical products packaging sector.
