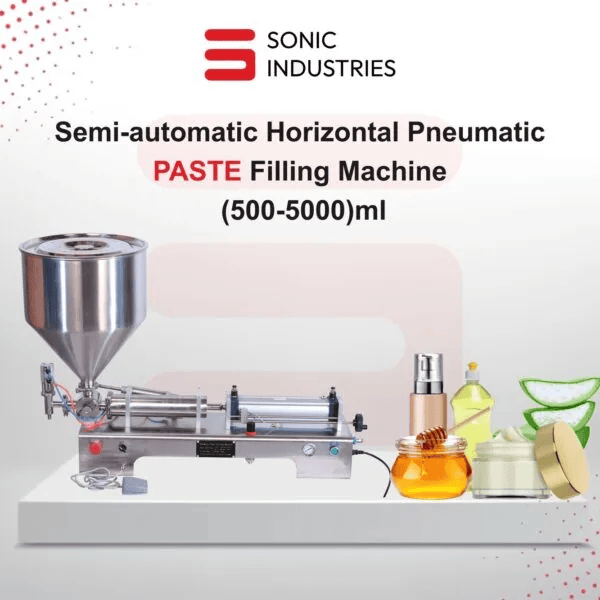

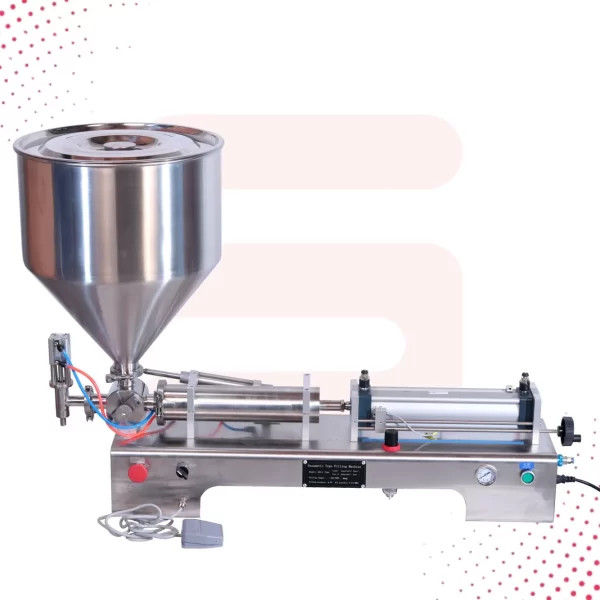

Pnemautic Paste filling Machine Single head 500 to 5000 ML

Name: Pnemautic Paste filling Machine Single head 500 to 5000 ML
Brand: SONIC INDUSTRIES
Price: 84734.325 INR
Availability: InStock

Price 84734.325 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Pnemautic Paste filling Machine Single head 500 to 5000 ML Specification

Filling Range
500 to 5000 ML

Filling Material
Semi-viscous and viscous pastes (such as creams, sauces, gels, ointments, honey, adhesives, etc.)

Core Components
Cylinder, Valve, Seals, Air Compressor

Grade
Semi-Automatic

Motor Power
Not Applicable (Pneumatic Operation)

Driven Type
Pneumatic

Weight
Approximately 60 kg

Dimension (L*W*H)
950 mm x 420 mm x 380 mm

Voltage
Not Applicable (Air Driven)

Usage & Applications
Filling of pastes in bottles, jars, containers for food, cosmetics, pharmaceuticals, chemicals, and allied industries

Product Type
Single Head Paste Filling Machine

Air Consumption
Approximately 0.05 - 0.08 m3/min at 0.4 - 0.6 MPa

Packaging Type
Bottles, Jars, Tins, Tubes, Containers

Capacity
10-20 fills per minute (depends on operator and product viscosity)

Filling Accuracy
1%

Air Pressure Requirement
4-6 Bar

Control System
Manual & Foot Pedal Operation

Hopper Volume
30 Liters

Nozzle Diameter
18 mm (customized as per requirements)

Suitability
Suitable for hot and cold filling

Cleaning
Tool-free dismantling for easy cleaning

Material of Construction
Contact parts SS 304/316; Frame Mild Steel/SS

Pnemautic Paste filling Machine Single head 500 to 5000 ML Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5 Days

About Pnemautic Paste filling Machine Single head 500 to 5000 ML

Pneumatic Paste Filler 500ml to 5000ml

HeavyDuty SemiAutomatic Filling Machine for Bulk Packaging of Creams Sauces Gels More

ThePneumatic Paste Filler 500ml to 5000mlis an industrialgrade highcapacity semiautomatic filling machine built forbulk paste filling applications Engineered with robust materials and designed for precision it is ideal for businesses that need to fill large containers such as buckets jars cans bottles and tubs with highviscosity or semiviscous products

This model operates usingcompressed air requiring no electricity and offers high fill volume accuracy hygienic construction SS304 or SS316 and toolfree maintenance Whether youre afood processor Ayurvedic manufacturer cosmetic brand or industrial chemical producer this machine offers a highly scalable and costefficient solution for batch filling operations

Massive Filling Volume 500ml to 5000ml

The machine supports filling operations from500 milliliters up to 5 liters making it perfect for highvolume bulk packaging Its adjustable piston allows you to set the exact volume for different product sizes without changing machines

Pneumatic Drive System

Powered entirely bycompressed air this machine eliminates the need for electricity This makes it safe for wet production environments reduces power dependency and increases operational safety A 1HP2HP air compressor is recommended

High Accuracy Consistency 1

With a precisionengineered pneumatic piston mechanism this filler guarantees consistent and repeatable fills within1 accuracy It drastically reduces product wastage and improves packaging uniformity across batches

Stainless Steel SS304 Build SS316 Optional

All productcontacting parts are fabricated fromSS304 stainless steel which is rustproof durable and compliant with GMP HACCP and foodpharma industry regulationsSS316is available for chemical or pharmaceuticalgrade requirements

DripFree ShutOff Nozzle

Equipped with an advancedantidrip shutoff valve the nozzle ensures that filling is clean and controlled This prevents leaks spills and trails after filling especially with sticky or thick pastes

SemiAutomatic with Foot Pedal Operation

The operator triggers the filling process via afoot pedalorpushbutton providing full control over each cycle This semiautomatic function is ideal for small and mediumscale production runs

Robust Construction for Industrial Use

The machine is built to handleheavyduty usage featuring a large hopper up to 100 liters thickgauge steel body and highcapacity pneumatic systems It is designed to operate continuously in demanding environments

Parameter Specification

Model Pneumatic Paste Filler 500ml to 5000ml

Filling Range 500ml to 5000ml adjustable

Accuracy 1

Drive Type Pneumatic Air Compressor Driven

Air Pressure Required 04 06 MPa

Operation Control Foot Pedal Manual Push Button

Hopper Capacity 80L 100L Customizable

Construction Material SS304 SS316 Optional

Nozzle Type DripFree ShutOff Valve

Output Speed 510 fillsmin productdependent

Cleaning ToolFree Disassembly

Machine Weight 90 120 kg

Food Products

Tomato sauce ketchup

Chutneys and pickles

Peanut butter chocolate paste

Mayonnaise mustard

Fruit jam and syrups

Honey and jaggery paste

Cosmetics Personal Care

Hair cream gel conditioners

Face packs and scrubs

Herbal body creams and lotions

Body butter in large jars

Pharmaceuticals Ayurvedic

Medicated ointments

Ayurvedic lehyam and churna

Herbal creams and pastes

Pain relief balms

Industrial Chemical Products

Adhesives and glue pastes

Cleaning gels and chemicals

Liquid soaps and detergents

Grease and lubricants

Slurry and semisolid chemicals

Industry Common Use Cases

Food Processing Large jars buckets of chutney sauce or pastes

Cosmetics Bulk packing of body lotions gels

AyurvedicPharma 1L5L containers of balm or herbal paste

Chemical Industry Detergent pastes lubricants cleaning gels

1 Precision Filling in Bulk Sizes

Highvolume fills are often prone to spillage or inconsistency This machine maintains high accuracy even for5litre containers ensuring every pack is uniform and leakfree

2 Versatile for Many Industries

Whether youre infood cosmetics pharma or industrial manufacturing this filler adapts to your product from sauces to adhesives all in a single machine

3 Durable Low Maintenance

Built withlonglife pneumatic components thickgauge stainless steel and simple mechanisms it needs minimal maintenance and deliversyears of reliable service

4 Easy to Clean

All productcontacting parts can be removedwithout tools making it easy to clean between batches A simple water flush is often enough for nonsticky products

5 EnergyFree Operation

No electricity required Operates on compressed air only making it ideal forremote production unitsflammable zones orhygienic areas

6 Customizable Hopper Capacity

Standard models offer 80100L stainless steel hoppers Larger capacities can be built to order based on production requirements

Feature Purpose

SS316 Contact Parts For corrosive or pharmagrade products

Jacketed Heated Hopper Maintains paste flow for thick or solidifying items

Double Nozzle Configuration Fills two containers at once to double speed

Extended Nozzles For deep containers or widemouth buckets

Caster Wheels with Locking For portable and mobile operation

Keeping the machine clean is easy and quick

Disassembles in under 5 minutes

Flushableusing water or light detergent

No electronic circuits minimal breakdown risk

Smooth internal finishprevents product buildup

Ideal forfrequent product changeovers

By integrating this filler into your workflow youll experience

Faster turnaroundon largebatch production

Reduced labor and fatiguecompared to manual filling

Improved product consistency

GMPcompliant packaging standards

Lower product waste especially with thick substances

Scalabilityas your business grows

Pneumatic Paste Filler Machine 500ml to 5000ml

SS Hopper with lid standard 100L

Antidrip stainless steel nozzle

Foot pedal control panel

Toolset for maintenance

User manual installation guide

Optional Cleaning brushes spare nozzle tips

The 500ml to 5000ml Pneumatic Paste Filler has been successfully deployed in

India major food manufacturers herbal industries detergent producers

Middle East largescale paste filling for sauces and oils

Africa Southeast Asia agrochemical companies and bulk food brands

Export Units for 5L jars and institutional food packs

Precision and Versatility

Achieve optimal accuracy with our single-head pneumatic paste filler, delivering reliable results within 1% error margins. Compatible with a broad range of semi-viscous or viscous substances-creams, gels, sauces, adhesives-the filling volume is easily adjustable from 500 to 5000 ML. Both hot and cold filling processes are supported, making this machine incredibly adaptable to diverse production needs.

Easy Maintenance and Operation

Designed with efficiency in mind, the paste filling machine offers tool-free dismantling for fast, effortless cleaning between production runs. The manual and foot pedal operating systems enhance control for operators, ensuring precise batch output. Its stainless steel construction guarantees hygiene and durability over extensive use.

Air-Driven Reliability

Powered by pneumatic systems, there is no requirement for electric motors or voltage, improving safety in diverse environments. With low air consumption and straightforward air pressure requirements, this machine offers dependable performance while keeping operational costs manageable.

FAQ's of Pnemautic Paste filling Machine Single head 500 to 5000 ML:

Q: How does the Pneumatic Paste Filling Machine ensure accurate filling?

A: The machine achieves filling accuracy of 1% through its robust pneumatic system and precision-engineered cylinder and valve. The adjustable 18 mm nozzle (or custom sizes) and SS 304/316 contact parts support consistent, repeatable fills for quantities between 500 and 5000 ML.

Q: What maintenance is required and how is the machine cleaned?

A: Maintenance is minimal due to the tool-free dismantling design. Operators can quickly and easily disassemble the contact parts-such as the hopper and nozzle-for thorough cleaning, supporting both hygiene standards and rapid product changeover.

Q: When is this paste filling machine suitable to use?

A: This equipment is ideal for both small and medium-scale production runs involving semi-viscous or viscous products like creams, sauces, ointments, honey, and adhesives. Its design accommodates a wide range of industries, including food processing, cosmetics, pharmaceuticals, chemicals, and allied sectors.

Q: Where can the filling machine be installed and operated?

A: Due to its pneumatic operation and compact footprint (950 mm x 420 mm x 380 mm), the machine fits seamlessly into workshops, manufacturing units, and production floors that have access to a compatible compressed air supply (4-6 Bar). No electrical connection is needed.

Q: What process is followed during operation?

A: Operators fill the 30L hopper, adjust the desired filling range, and use either manual lever or foot pedal controls to activate the single-head nozzle. Paste is then dispensed into bottles, jars, tins, tubes, or containers with uniform precision.

Q: Why choose this machine for filling tasks?

A: Choosing this pneumatic filler provides benefits including accurate, repeatable fills, time-efficient changeovers due to easy cleaning, compatibility with a variety of paste types, and hygienic, durable stainless steel construction. It supports both hot and cold filling needs, maximizing operational flexibility.
